Anti Static Dust Collector Cartridge Filters
Anti Static Dust Collector Cartridge Filters
Specifications
Brand Name :
XINYUAN
Model Number :
XY-3266
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30,000 pcs/month
Delivery Time :
24 hours
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Specification size (mm) :
323*215*660
Installation method :
Screw hoisting,Quick release chuck
Filter area (m²) :
6.8
Handling air volume（m³/h） :
450-800
Quantitative filter material (g/m²) :
260
Filtration efficiency（≥0.2-10μm） :
99.9%
Description

Anti-Static Non-Woven Filter Cartridge

Product Description:

The core component of the product is filter material, which is mainly divided into: domestic ordinary polyester fiber non-woven fabric, anti-static non-woven fabric, PTFE coated non-woven fabric, high temperature resistant flame-retardant non-woven fabric, imported Japanese Toray non-woven fabric (anti-static Electrostatic, film), American Donaldson company Tetratex brand film filter material. Ordinary non-woven materials can filter out dust particles above 20 microns, and PTFE coated materials can filter out dust particles above 0.2 microns, which can meet the concentration emission standard of ≤10mg.

Product parameter:

Product number Specification size (mm) Quantitative filter material (g/m²) Filter area (m²) Handling air volume Filtration efficiency Installation method
(m³/h) (≥0.2-10μm)
XY-3266 323*215*660 260 6.8 450-800 99.90% Screw hoisting,
Quick release chuck
XY-32100 323*215*1000 260 12 700-1200 99.90%
XY-120 Ø120*900 260 0.81 150-300 99.90% Flower board installation
Ø120*1000 260 0.9 180-320 99.90% Flower board installation
XY-160 Ø160*2400 260 7.68 360-720 99.90% Flower board installation
Ø160*3000 260 9.6 1140-2040 99.90% Flower board installation
XY-200 Ø200*800 260 2.56 300-550 99.90% Flower plate mouth hoisting
Ø200*1000 260 3.2 380-680 99.90% Flower plate mouth hoisting
Other standard specifications and various non-standard specifications can be customized
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours

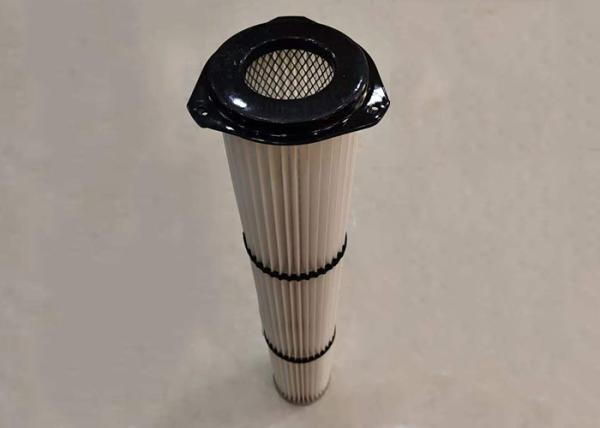

Pictures:
Anti Static Dust Collector Cartridge Filters

Features:

Polyester fiber non-woven fabric material has the characteristics of large filtering area, good filtering effect, oil repellent, moisture-proof, waterproof, easy to clean dust, and easy to install.

FAQ:

Q1.Are you a factory and trading company?
A: We are a factory

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
