Oil Repellent Moistureproof Air Purifier Dust Collector
Oil Repellent Moistureproof Air Purifier Dust Collector
Specifications
Brand Name :
XINYUAN
Model Number :
XY-120
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30,000 pcs/month
Delivery Time :
24 hours
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Specification size (mm) :
Ø120*900
Installation method :
Screw hoisting,Quick release chuck
Filter area (m²) :
0.81
Handling air volume（m³/h） :
150-300
Quantitative filter material (g/m²) :
260
Filtration efficiency（≥0.2-10μm） :
99.9%
Description

Oil Repellent, Moistureproof, Good Sealing Performance Filter Cartridge

Product Description:

High efficiency polyester air cartrdge filter

1.100% polyester filter media
2.Filter efficiency up to 99.99%
3.Integrated design. quick and easy installation,maintenance
4.Wide pleat depth
5.PTFE membrane,antistatic etc.

Product parameter:

Product number Specification size (mm) Quantitative filter material (g/m²) Filter area (m²) Handling air volume Filtration efficiency Installation method
(m³/h) (≥0.2-10μm)
XY-3266 323*215*660 260 6.8 450-800 99.90% Screw hoisting,
Quick release chuck
XY-32100 323*215*1000 260 12 700-1200 99.90%
XY-120 Ø120*900 260 0.81 150-300 99.90% Flower board installation
Ø120*1000 260 0.9 180-320 99.90% Flower board installation
XY-160 Ø160*2400 260 7.68 360-720 99.90% Flower board installation
Ø160*3000 260 9.6 1140-2040 99.90% Flower board installation
XY-200 Ø200*800 260 2.56 300-550 99.90% Flower plate mouth hoisting
Ø200*1000 260 3.2 380-680 99.90% Flower plate mouth hoisting
Other standard specifications and various non-standard specifications can be customized
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours

Pictures:

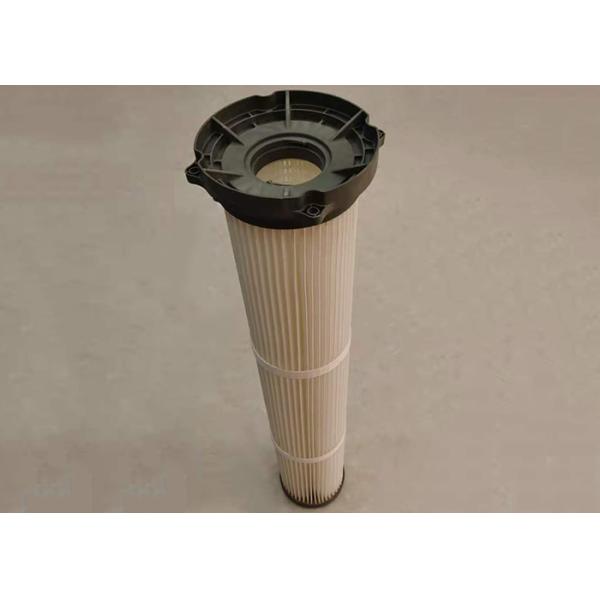

Oil Repellent Moistureproof Air Purifier Dust Collector

Features:

1.To maintain maximum filtering surface, pleats are held in place with hot melt spiral beading inside and outside.
2.It is most important that the power industry fit their gas turbine with the best air filtration systems & elements available on the market.

Application:

Mainly used in the field of industrial filtration, such as various filtration processes in power, cement, steel, non-ferrous metals, mining, and chemical industries.

FAQ:

Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q3: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
