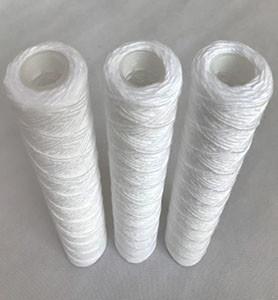

Water Treatment Systems 1um Wire Wound Filter Cartridge
Water Treatment Systems 1um Wire Wound Filter Cartridge
Specifications
Brand Name :
XINYUAN
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30,000 pcs/month
Delivery Time :
24 hours
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Series name :
Wire Wound Filter Cartridge
Skeleton :
PP
the inside diameter of :
Ø28 Ø30
Length :
10″20″30″40″
Filter material :
PP
Precision :
1-100μm
Outer diameter :
Ø60 Ø63
Sealing material :
Silica gel, Oil resistant nitrile, fluorine rubber,
Operating temperature :
≤80℃
Pressure drop (Mpa) :
0.2
Description

Used For Liquid Filter Wire-Wound Filter Elements In Various Water Treatment Systems

Product Description:

The main advantage of the string wound filter cartridge is its exceptionally high structural strength there for, they can withstand higher PSID and severe operating conditions. Large void volume design for low-cost, reliable filtration performance with high contaminant holding capacity.

Product parameter:

Series name Outer diameter inside diameter Length Filter material Skeleton Precision Sealing material Operating temperature Pressure drop (Mpa)

PP melt blown filter element

Ø60
Ø63

Ø28
Ø30

 10″20″30″40″ PP PP 1-100μm ≤80℃ 0.2
Microporous pleated filter element Ø68

Ø28
Ø30

 10″20″30″40″

PP, PP+ PTFE film, PP+PES film,
GF (glass fiber)

PP, stainless steel

 0.1-50μm

Silicone, oil-resistant nitrile, fluorine rubber,

 ≤80℃ 1.25

PALL high flow folding filter element

 Ø160 Ø89 20″30″40″60″ PP+ film PP 1-150μm ≤80℃ 0.42

3M high flow filter element

 Ø160 Ø77 20″30″40″60″ PP PP 1-100μm ≤80℃ 0.42

Parker high flow folding filter

 Ø152 Ø100 20″30″40″60″ PP PP 1-100μm ≤80℃ 3.4

Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours



Pictures:

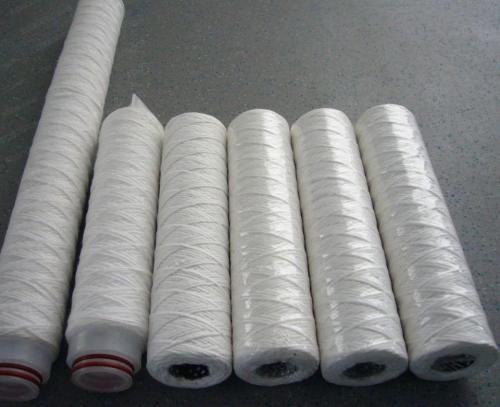

Water Treatment Systems 1um Wire Wound Filter Cartridge

Product Features:

PP String Wound filter cartridge consists of a core winded tightly with PP textile fibre in order to form filters that may vary in filtration precision, according to the density of the string during winding. This type of filter can remove the suspended particles in liquids. Pure Life String Woud filters provide high quality depth filtration. It can also be manufactured by many types of material in order to meet different needs or types of liquids.

FAQ:

Q: Are you a manufacturer?
A: Yes, we have our own factory.

Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.

Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
