microporous PES Film 50um PP Pleated Filter Cartridge
microporous PES Film 50um PP Pleated Filter Cartridge
Specifications
Brand Name :
XINYUAN
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30,000 pcs/month
Delivery Time :
24 hours
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Series name :
PP Pleated Filter Cartridge
Outer diameter :
Ø60 Ø63
the inside diameter of :
Ø28 Ø30
Length :
10″20″30″40″
Filter material :
PP
Skeleton :
PP
Precision :
1-100μm
Sealing material :
Silica gel, Oil resistant nitrile, fluorine rubber,
Operating temperature :
≤80℃
Pressure drop (Mpa) :
0.2
Description

The Filter Pore Size Is Small Inside And Large Outside, With Good Deep Filtering Effect

Product Description:

PP microporous pleated filter element is made of polypropylene superfine fiber material after being folded and hot-melt bonded. It does not use any chemical adhesives, and integrates deep filtration and precision filtration. The deep filtration structure with sparse and dense pores on the outside can effectively remove suspended solids, particles, rust and other impurities in the flowing liquid.

Product parameter:

Series name Outer diameter the inside diameter of Length Filter material Skeleton Precision Sealing material Operating temperature Pressure drop (Mpa)
PP melt blown filter element

Ø60

Ø63

Ø28

Ø30

 10″20″30″40″ PP PP 1-100μm ≤80℃ 0.2
Microporous pleated filter element Ø68

Ø28

Ø30

 10″20″30″40″ PP, PP+ PTFE film, PP+PES film, GF (glass fiber) PP, stainless steel 0.1-50μm Silica gel,
Oil resistant nitrile, fluorine rubber,		 ≤80℃ 1.25
PALL high flow folding filter element Ø160 Ø89 20″30″40″60″ PP+ film PP 1-150μm ≤80℃ 0.42

3M

Large flow filter

 Ø160 Ø77 20″30″40″60″ PP PP 1-100μm ≤80℃ 0.42
Parker high-flow folding filter Ø152 Ø100 20″30″40″60″ PP PP 1-100μm ≤80℃ 3.4
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours

Pictures:

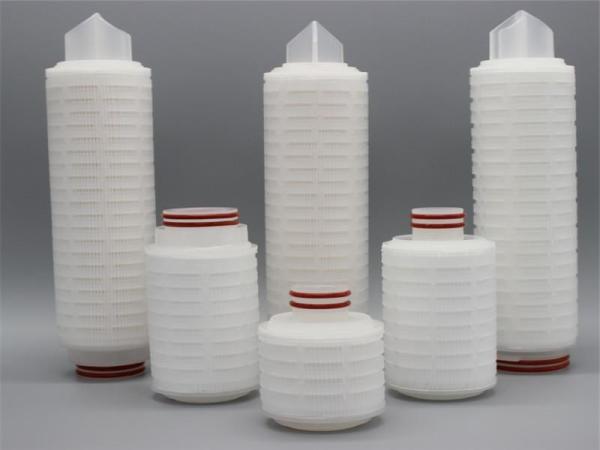

microporous PES Film 50um PP Pleated Filter Cartridge

Item Features:

The pressure difference is small, the dirt holding capacity is strong, the filtration efficiency is high, and the life is long. The foldable filter element has high cleanliness, reduces water pollution, and is resistant to corrosion by chemical reagents such as acids and alkalis and organic solvents.

FAQ:

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: what's the material of your products?
1, National filter material:air paper /oil paper/fiber glass/stainless steel mesh/Stainless steel sintered,
2, Imported filter material: Fiber glass imported from HV company of USA.Oil paper imported from South Korea and ect.
3,End caps material: Carbon steel & stainless steel & Aluminum & Machined&Plastic.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
