No Rupture No Air Leakage F5 Pocket Air Filters
No Rupture No Air Leakage F5 Pocket Air Filters
Specifications
Brand Name :
XINYUAN
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10,000 pcs/month
Delivery Time :
24 hours
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Size (mm) :
287*592*550
Number of bags :
3
Filter area (m²) :
2.12
Rated air volume (m³/h) :
1700
Initial resistance (Pa) :
20
Final resistance (Pa) :
400
Description

No Rupture, No Air Leakage Pocket Air Filters

Product Description:

The bag filter has the characteristics of large filtering area, large dust holding capacity, small resistance, large ventilation, etc. The frame and support frame can be reused. When replacing the filter, only the filter bag needs to be replaced, which is convenient and fast, which greatly reduces operation Cost.

Product parameter:

Size (mm)

Number of bags

Filter area (m²)

Rated air volume (m³/h)

Efficiency class

Initial resistance (Pa)

Final resistance (Pa)

287*592*550

3

1.86

1700

35%(G4)

15

350

592*592*550

5

3.12

3400

20

592*592*600

6

3.78

3400

20

287*592*550

3

2.12

1700

45%(F5)

20

400

592*592*550

5

3.66

3400

30

592*592*600

6

4.40

3400

30

287*592*550

3

2.12

1700

65%(F6)

45

400

592*592*550

5

3.66

3400

80

592*592*600

6

4.40

3400

80

287*592*550

3

2.80

1700

85%(F7)

100

400

592*592*550

5

4.78

3400

125

592*592*600

6

5.78

3400

125

287*592*550

3

2.80

1700

95%(F8)

110

450

592*592*550

5

4.78

3400

130

592*592*600

6

5.78

3400

130

Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours
Pictures:

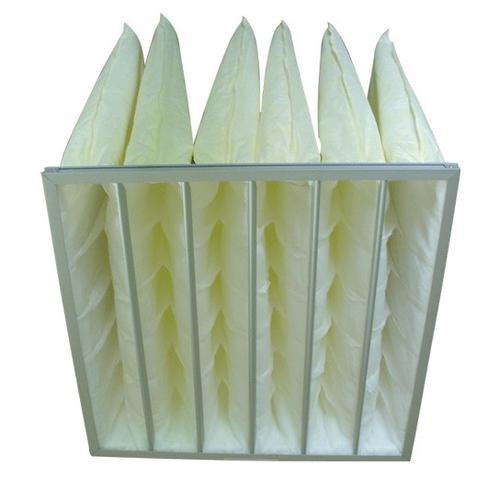

No Rupture No Air Leakage F5 Pocket Air Filters

Product features:


Frame: Galvanized frame, aluminum frame, stainless steel frame, frame can choose 21mm, 25mm, 46mm
Media: Using special glass fiber as the filter material
Efficiency: (EN779:2002) F5,F6,F7,F8,F9
Recommended final pressure drop: 550Pa
Temperature: 150℃
Fire rating: DIN 53438 class F1

Application:

Bag filters are widely used in central air-conditioning ventilation systems, and air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.

FAQ:

1.Q:Are you trading company or manufacturer
A:We are manufacturing specialized in industrail air filter(filter cloth,filter bag,filter cartridge,air conditioner,filter cage,controller)etc.

2.Q:Can the product be customized?
A:Yes,both the product and the packaging can be customized.We offer OEM and ODM services.

3.Q:What's your packing?
A:Plastic/Carton,or according to your requirements.

4.What's is Minimun order quantity?
A:No strict principle for standard size,but 10pcs for non-standard dimensions or types.

5.What about the after-sales services?
A:Our company is responsible for the supplied product within usage life.
