Corrosion Resistance Glass Fiber Dust Collector Filter Bag
Corrosion Resistance Glass Fiber Dust Collector Filter Bag
Specifications
Brand Name :
XINYUAN
Certification :
ISO9001 quality management system certification
Place of Origin :
Langfang City, Hebei Province, China
MOQ :
100 pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000 pieces/month
Delivery Time :
3 days
Packaging Details :
Regular paper packaging. Depending on the model, the packaging will vary.
Material :
Polyester
Weight g/m² :
500-550
Operating temperature °C :
Continuous 130, instantaneous 150
Performance :
Easy cleaning
Applicable industry :
Steel plants, cement plants, coal mines, etc.
Acid and alkali resistance :
excellent
Description

Corrosion Resistance, PPS Dust Filter Bag

Product Description:

The filter bag expansion ring can be divided into normal temperature expansion ring and high temperature expansion ring according to the temperature. The filter bag expansion ring is a dust collector accessory used with the dust filter bag. The expansion ring is made by combining high-quality stainless steel strips and concave rubber sleeves. Using the principle of elastic expansion, the filter bag is stuck on the pattern hole of the dust collector-dust removal bag. Its characteristics are customized according to the sample, tightly sealed, and firmly installed. The filter bag is fixed on the hole of the flower plate by the elastic expansion ring of the bag mouth, which is firmly fixed and has good sealing performance.

Product parameter:

Material Polyester Polyester film Polyester anti-static Polyester is water and oil repellent
Weight g/m² 500-550 500-550 500-550 500-550
Operating temperature °C Continuous 130, instantaneous 150 Continuous 130, instantaneous 150 Continuous 130, instantaneous 150 Continuous 130, instantaneous 150
Performance Easy cleaning Microporous filtration reduces emission concentration Anti-static, easy to clean dust Water repellent, oil proof, easy to clean dust
Applicable industry Steel plants, cement plants, coal mines, etc. Steel plants, cement plants, chemical plants, power plants, etc. Flour mills, chemical plants, coal mines, cement plants, etc. Cement plants, chemical plants, flour mills, woodworking furniture factories, etc.

Technical parameters of Flumes filter media
Fiber composition E-glass fiber
Weight (g/m²) 800-1000
Thickness (mm) 2.5-3.0
Acid and alkali resistance excellent
Oxidation resistance excellent
Hydrolysis resistance excellent
Operating temperature (℃) Continuous: 240 Instantaneous: 260
Breaking strength (N) Warp direction ≥1800 Weft direction ≥1800
Linear shrinkage rate (%) Warp direction≤1.5 Weft

direction≤1

Pictures:

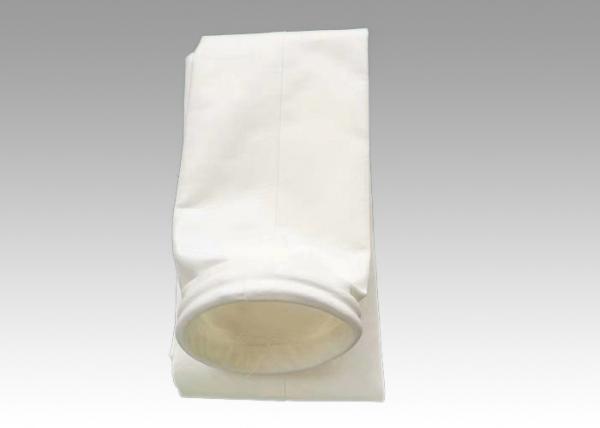

Corrosion Resistance Glass Fiber Dust Collector Filter Bag

Item Features:

The filter bags are made of various materials, mainly made of polyester, polypropylene, acrylic, PPS, flumesi, PTFE film, glass fiber and other materials. The materials have their own characteristics, some have good air permeability, smooth surface, good dimensional stability, easy to peel off dust; some are resistant to high temperature, corrosion, and wear resistance; some are oil-repellent, waterproof, and anti-static.

FAQ:

1.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.

2.Do you Accept OEM service?
YES!

3. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!

4.What's your delivery terms?
(1)FOB (2)CFR (3)CIF

5.What's your Delivery Time?
1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock
2)Normally within 15 to 30 days,please confirm with us before order!
