Industrial Dust Filter Cartridge

Product description:

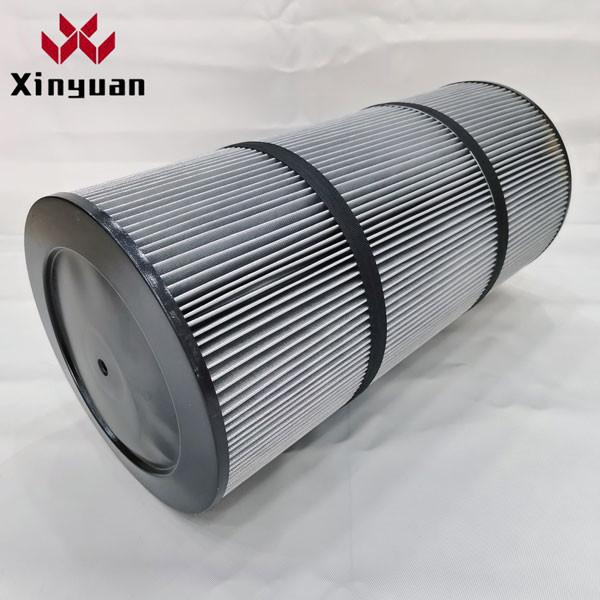

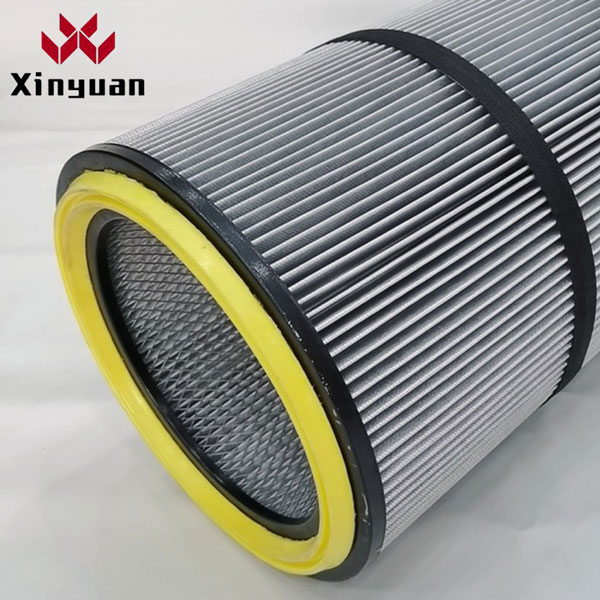

The filter cartridge is a star-shaped filter cartridge made of a certain length of filter material folded into pleats and glued end to end. The filter cartridge has no cage bones and is easy to install. There are many varieties of filter cartridges, which are thin and long and thick and short.

Slender filter cartridge (such as φ≤160, L=1～2m), the pleats (such as 45 pleats) have large gaps, large included angles, few and shallow pleats, and the filtration area is 2～larger than the filter bag of the same diameter and length. 5 times, easy to clean dust and good effect; suitable for filtering dust with concentration ≥15g/m, filtering wind speed 0.6～1.2m/min.

The thick and short filter cartridge (such as φ350, L=0.66m) has a large diameter, short length, many pleats (120-350 pleats) and deep, small gaps between pleats, and a large filtering area, which is larger than a filter bag with the same diameter and the same length. ～35 times, it is suitable for the layout of small site area and small space; but because of the small fold angle, dust is easy to accumulate, and it is difficult to clean the dust. It is suitable for filtering dust with a concentration of ≤5g/m, and the filtering wind speed should not be >0.6

Product Features/Advantages: Dust Filter Cartridge-Performance Features:
(1) The filter cartridge is wear-resistant, acid and alkali resistant, and strong
(2) Can be washed and reused, with long service life
(3) The filter cartridge has a good anti-static function and is widely used
(4) The new open folding design increases the effective filtering area, and can make the air flow constant and pass the surface without obstacles.
(5) The anti-static dust removal filter cartridge can be installed in the filter part of the pulse blowback and direct dust removal (applicable for vertical and horizontal installation). The advanced production line and superior testing equipment ensure the quality of the filter cartridge.
