Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
Specifications
Model Number :
6GK1905-6AA00
Certification :
CE
Place of Origin :
Germany
MOQ :
1 PCS
Price :
consult for best discount
Payment Terms :
T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability :
100 Pcs/month
Delivery Time :
2-10 days
Packaging Details :
original package
Type :
FastConnect
Application :
Industrial Communication
Series :
PROFIBUS Cable
Lead time :
in stock
Warranty :
12 Months
Assembly :
Easy Assembly
Description

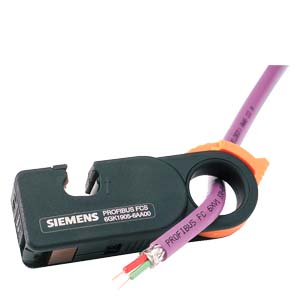

6GK1905-6AA00 PLC Cables And Connectors PROFIBUS FastConnect Stripping Tool

Overview

  • Quick and easy assembly of PROFIBUS copper cables
  • Assembly mistakes such as short-circuits between the shield and core are excluded
Benefits
  • Shorter connection times for terminals by stripping of the outer cladding and woven shield in one step
  • Installation faults, such as short-circuits between the shield and cores, are excluded
  • Easy assembly due to preset insulation stripping tool (FC stripping tool)
  • Termination can be checked in the assembled state through the transparent cover for the insulation piercing terminals thanks to color coding.
Design

The system comprises 3 compatible components:

  • FastConnect bus cables for rapid installation
  • FastConnect stripping tool
  • FastConnect bus connector for PROFIBUS

The PROFIBUS FastConnect bus cables can also be connected to conventional bus connectors.

Function

The FastConnect stripping method enables fast and easy connection of PROFIBUS connectors to the PROFIBUS cables.

The special structure of the FastConnect bus cables enables the use of the FastConnect stripping tool with which the outer casing and the woven shield can be stripped in one operation with perfect precision. The cable prepared in this way is connected in the FastConnect bus connector using the insulation displacement method.

6GK1905-6AA00 PROFIBUS FastConnect
Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
PROFIBUS FastConnect stripping tool, Stripping tool for fast stripping of the PROFIBUS FastConnect bus cable
Product
Article Number (Market Facing Number) 6GK1905-6AA00
Product Description PROFIBUS FastConnect stripping tool, Stripping tool for fast stripping of the PROFIBUS FastConnect bus cable
Product family PROFIBUS FastConnect
Product Lifecycle (PLM) PM300:Active Product
Delivery information
Export Control Regulations AL : N / ECCN : N
Standard lead time ex-works 1 Day/Days
Net Weight (kg) 0,065 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 5,50 x 15,60 x 3,50
Package size unit of measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4019169400244
UPC 662643225143
Commodity Code 82089000
LKZ_FDB/ CatalogID IK
Product Group 2452
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Given
Product class A: Standard product which is a stock item could be returned within the returns guidelines/period.

Fast PLC Cables And Connectors PROFIBUS Connect Stripping Tool 6GK1905-6AA00
