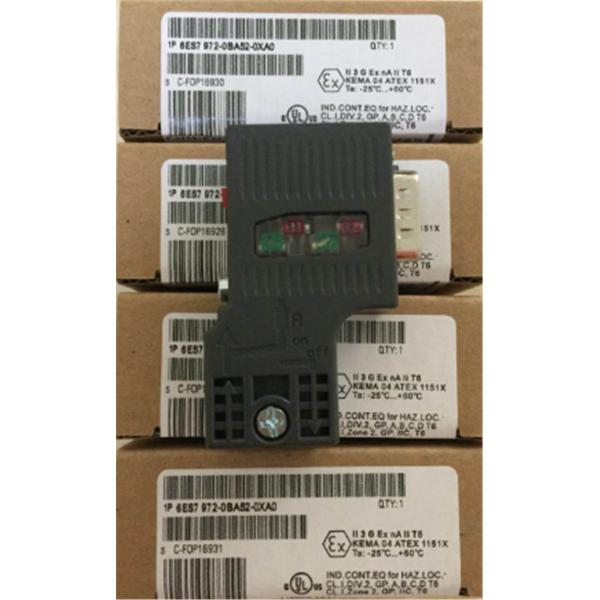

6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
Specifications
Model Number :
6ES7972-0BA52-0XA0 0BB42-0XA0 0BB52-0XA0
Certification :
CE
Place of Origin :
Germany
MOQ :
1 PCS
Price :
consult for best discount
Payment Terms :
T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability :
100 Pcs/month
Delivery Time :
2-10 days
Packaging Details :
original package
Series :
6ES7972-0BA 0BB Bus Connector
Application :
Industrial Communication
Condition :
Original new parts
Lead time :
IN STOCK
Storage Temperature :
-40 to +70 °C
Warranty :
12 Months
Description

6ES7 972-0BA52 0BB42 PLC Cables And Connectors Simatic PLC ET200 Connector

Application

The RS485 bus connectors for PROFIBUS are used for connecting a PROFIBUS node or a PROFIBUS network component to the bus cable for PROFIBUS.

Function

The bus connector is plugged directly into the PROFIBUS interface (9-pin Sub-D socket) of the PROFIBUS station or a PROFIBUS network component.

The incoming and outgoing PROFIBUS cable is connected in the plug using 4 terminals.

By means of an easily accessible switch which is clearly visible from the outside, the line terminator integrated in the bus connector can be connected (not in the case of 6ES7 972-0BA30-0XA0). In this process, incoming and outgoing bus cables in the connector are separated (separation function).

This must be done at both ends of a PROFIBUS segment.

Specifications Of 6ES7972-0BA52-0XA0 Simatic PLC ET200 Connector

Article number

6ES7972-0BB42-0XA0

6ES7972-0BA30-0XA0

6ES7972-0BA52-0XA0
Suitability for use For connecting PROFIBUS nodes to the PROFIBUS bus cable For connecting PROFIBUS nodes to the PROFIBUS bus cable For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP 9.6 kbit/s ... 12 Mbit/s 9.6 kbit/s ... 1.5 Mbit/s 9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections

  • ● for PROFIBUS cables

 2 2 2

  • ● for network components or terminal equipment

 1 1 1
Type of electrical connection

  • ● for PROFIBUS cables

 Screw Integrated insulation displacement contacts for 2-core PB FC-installation cables Integrated insulation displacement contacts for 2-core PB FC-installation cables

  • ● for network components or terminal equipment

 9-pin Sub-D connector 9-pin Sub-D connector 9-pin Sub-D connector
Type of electrical connection FastConnect No Yes Yes
Mechanical data
Design of terminating resistor Integrated resistor combination that can be selected with slide switch no integrated terminating resistor Integrated resistor combination that can be selected with slide switch
Material of the enclosure plastic plastic plastic
Locking mechanism design Screw Screw
Design, dimensions and weight
Type of cable outlet 35 degree cable outlet 30 degree cable outlet 90 degree cable outlet
Width 15.8 mm 15 mm 15.8 mm
Height 54 mm 57.6 mm 59 mm
Depth 39.5 mm 39.5 mm 35.6 mm
Net weight 67 g 46 g 10 g
Permitted ambient conditions
Ambient temperature

  • ● during operation

 -25 ... +60 °C -25 ... +60 °C

  • ● during storage

 -40 ... +70 °C -40 ... +70 °C -40 ... +70 °C

  • ● during transport

 -40 ... +70 °C -40 ... +70 °C -40 ... +70 °C
Protection class IP IP20 IP20 IP20
Product properties, functions, components general
Product feature

  • ● silicon-free

 Yes Yes Yes
Product component

  • ● PG connection socket

 Yes No No

  • ● strain relief

 Yes Yes Yes
Standards, specifications, approvals
Certificate of suitability

  • ● RoHS conformity

 Yes Yes Yes

  • ● UL approval

 Yes Yes Yes
Reference code

  • ● acc. to DIN EN 81346-2

 XF XF XF

6ES7 972-0BA52 0BB42 Profibus Connector / Simatic ET200 Bus Connector
