240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch
240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch
240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch
240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch
Specifications
Brand Name :
Changzhou Fanqun
Model Number :
GFG
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
negociation
Payment Terms :
T/T
Delivery Time :
90-120 working days
Packaging Details :
Plastic form+ water-proof cloth
name :
Fluid Bed dryer
material :
stainless steel 304
Heating :
by hot air
Dryer type :
by fluidization
product :
granules
moving type :
air blow
heating medium :
steam,natural gas, etc.
Hs code :
841939
GMP :
meet with GMP requirement
Description

Ce ISO Certificated Stainless Steel Fluid Bed Dryer for Granule

About GFG/FG Fluid Bed Dryer

After heater, hot air blows to the fluid bed dryer from the bottom. High speed air flow matain the product in a fluidizaiton status and be dried.

Features

1. Operation under minor- negative pressure to avoid dust leakage
2. Anti-static filter material will be designed
3. No dead angle and contamination to product
4. Drying and granulation at the same time is available
5. Standard and Ex-proof fluid bed dryer are available

Application

- Pharmaceutical product
- Food product
- Chemical product
- polyacrylymide
- Fertilizer

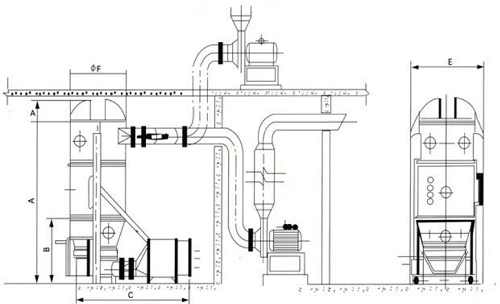

Flow Chart
240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch

Technical Parameter

Model Volume of Prouct Hopper(L) Drying Cpacity
(kg/batch)		 Steam Consump.
(kg/hr)		 Power of electric heater(KW) Size of dryer
(mm)
FG-30 100 30 150 60 Φ1000 X 2250
FG-60 220 60 190 81 Φ1000 X 2650
FG-120 420 120 230 120 Φ1200 X 2800
FG-300 1000 300 360 180 Φ1600 X 4000
FG-500 1500 500 450 240 Φ1800 X 5600

Note: Customized design is available

240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch

240KW Polyacrylymide Aeromatic Fluid Bed Dryer 500KG / Batch
