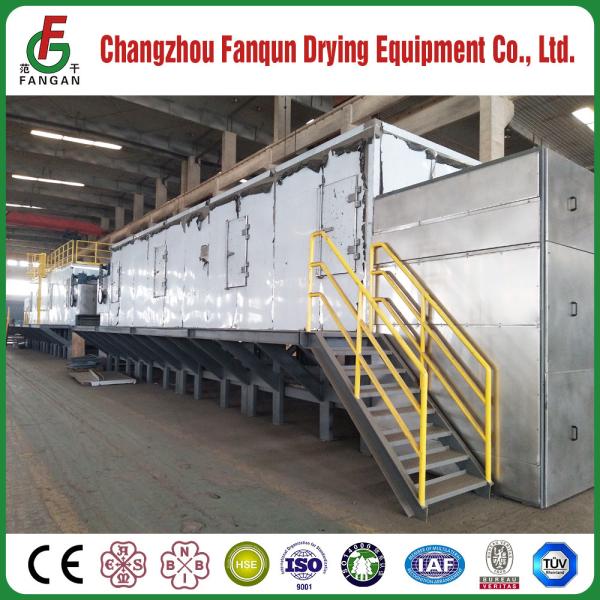

Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut
Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut
Specifications
Brand Name :
Changzhou Fanqun
Model Number :
DW
Certification :
CE,ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1set 120days
Delivery Time :
90-120 working days
Packaging Details :
Sea worth packing
Product name :
Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut
Capacity :
100-500kg/h
Type :
Industrial Belt Dryer
Application :
Food Processing,vegetable
Description

Ce ISO Certificated Belt Dryer for Pigment, Vegetable, Fish, Coconut, Fruit

About Belt Dryer
Belt Dryer is a continuous drying equipment with belt conveyer in the chamber. Product will be put on the belt and contact with hot air in each zone of dryer. Temperature in each zone could be controlled separatedly.

Applications:
- chemicla products
- pharmaceutical products
- food products
- vegetables
- fruit
- feed granule
- melon seeds
- seaweed
- pigment
- wood chips
- coconut shred
- plastic
- filter cakes
- rubber


Sketch of Belt Dryer

Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut

Technical Parameter Sheet

Model Zone No. Length of drying zone Operation Temp. Steam Consum. Installed Power
Dw1.2-8 4 8m 60-140°C 120-300kg/hr 11.4KW
Dw1.6-8 4 8m 60-140°C 150-375kg/hr 13.6KW
Dw1.6-10 5 10m 60-140°C 170-470kg/hr 13.6KW
DW2-8 4 8m 60-140°C 180-500kg/hr 12.5KW
DW2-10 5 10m 60-140°C 225-600kg/hr 14.7kw


Note: Customized design is available

Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut

Ce ISO Certificated Industrial Belt Dryer for Pigment Vegetable Fish Coconut
