99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Strong wooden box for global shipping
Application :
Semiconductor (IC), Implant system
Material :
99.8% Al2O3
Color :
White
Size :
Customized
Shape :
Round, balls, Irregular, tube, Customized
Density :
>=3.9g / cm3
Feature :
High Purity Alumina, High Electrical Insulation, Low Dielectric Loss
Product name :
Alumina Domes, Alumina Rings
Description

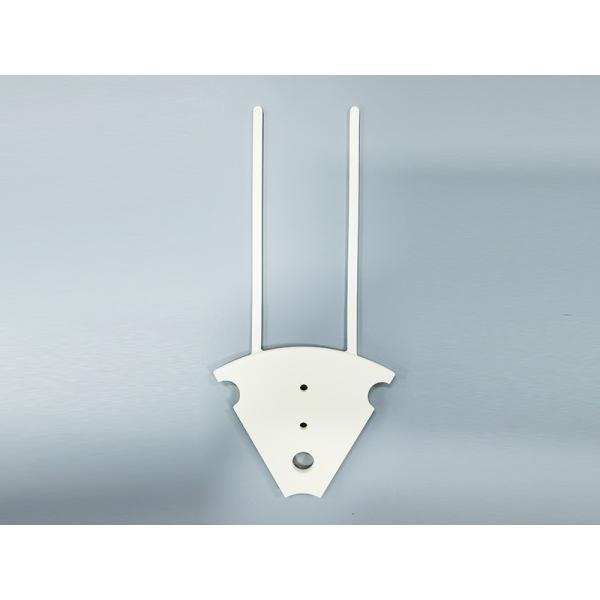

99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor

ZG Ceramic produced Ceramic arm for wafer drive of semiconductor feature good structural strength, high temperature resistance, high pressure resistance, good accuracy, good parallelism, high density and uniform organization. For many years, it has been used by the semiconductor manufacturing plant.

ZG Ceramic boasts a group of excellent engineers and enjoys a unique high-profile technology in the special-shaped ceramic processing projects. Special-shaped processing technology is the strengths of ZG Ceramics.

​Fields Served:

  • Shadow frame, Large format plate, Shield Base, Roller & Bushing in Flat Panel Display
  • Clamp Ring, Chamber Liner, Carrier (SiC) in LED manufacture
  • Etch system components, CVD, PVD components, Implant components in Semi-Conductor
  • Wearing components, Custom components in New Energy field
  • Wearing components, Grinding & Milling (Zirconia), Custom components in Industrial Machinery

99.8% High Purity Alumina Ceramic Arm For Wafer Drive Of Semiconductor

Specification:

特性项目 Items 　 三氧化二铝 Al2O3
材质编号
Material No.		 A99 A997 A997LT A998 A999
颜色 Color 白 White 象牙色 Ivory 象牙色 Ivory 象牙色 Ivory 象牙色 Ivory
纯度 Purity (Wt%) ≥99% ≥99.7% ≥99.7% ≥99.8% ≥99.9%
密度
Density		 g/cc ASTM-C20 3.8 3.92 3.92 3.93 3.94
吸水率
Water Absorption		 % ASTM-C373 0 0 0 0 0
HV硬度
HV Hardness		 GPa ASTM C1327-03 15 17 16 18 18
抗弯强度
Flexural Strength		 MPa ASTM C1161-02 365 370 390 400 400
抗压强度
Compressive Strength		 MPa ASTM C773 2450 2500 2500 2500 2600
弹性衡量
Elastic Modulus		 GPa ASTM C1198-01 360 375 385 385 385
波松比
Poisson's Ratio		 - ASTM C1198-01 0.23 0.23 0.23 0.23 0.23
断裂韧性
Fracture Toughness		 Mpa*m1/2 ASTM C1421-01 3 4 4 4 4
膨胀系数
Thermal Expansion R.T		 ×10-6/℃
R.T 400 ℃		 ASTM C372-94 7.2 8.2 8.2 8.2 8.2
热传导率
Thermal Conductivity		 W/(M.K) ASTM C408-88 29 32 32 32 33
耐热冲击
Thermal Shock
Resistance		 ℃ - 200 200 200 200 200
介电强度
Dielectric Strength		 KV/mm ASTM D149-97 15 15 15 16 18
体积电阻率
Volume Resistivity		 Ω.cm×1014 ASTM D257-99
(20°C)		 1 1 1 1 1
介电常数
Dielectric Constant		 - ASTM D150-98
(1 MHz)		 9.9 9.9 9.9 9.9 9.7
介电损耗
Dielectric Loss tangent		 (×10-4) ASTM D150-98
(1 MHz)		 20 10 <2 10 5
硝酸(60%), 90°C
HNO3		 WT loss mg/cm2/D - 0.1 <0.05 <0.05 <0.05 <0.03
硫酸(95%), 95°C
H2SO4		 WT loss mg/cm2/D - 0.33 <0.23 <0.23 <0.23 <0.2
氢氧化钠(30%), 80°C
NaOH		 WT loss mg/cm2/D - 0.26 <0.04 <0.04 <0.04 <0.02
