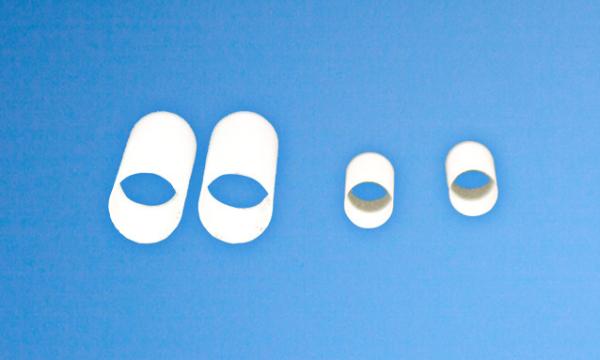

Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Isolator Terbium Scandium Aluminum Garnet TSAG Crystals For Faraday Rotator
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 piece
Price :
USD10/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
3 working days
Packaging Details :
Strong wooden box for Global shipping
Application :
Faraday rotator, Isolator
Products :
Terbium scandium aluminum garnet (TSAG) crystal
Advantage :
High power compatibility
Grade :
High
Description

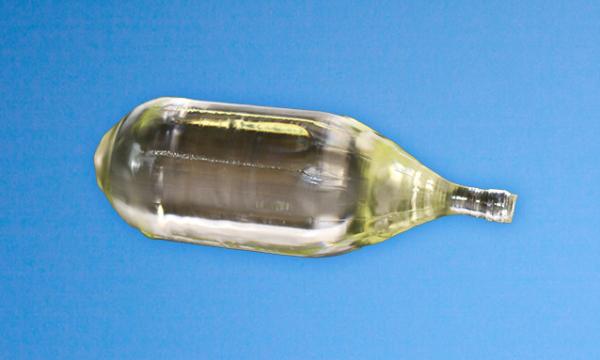

Terbium scandium aluminum garnet (TSAG) crystal

Terbium scandium aluminum garnet (TSAG) crystal is an ideal magneto-optical material, suitable for visible and infrared wavelengths (wavelength range: 400-1600nm). TSAG crystal has the advantages of high stability, good thermal and mechanical properties, which is essential for the next generation of high-power lasers.

Compared with TGG crystal, TSAG has higher feld constant and lower absorption loss, which makes the isolator more compact and is an ideal material for high power optical isolator.

Main advantages:

The large Verdet constant (48radt-1m-1 at 1064nm) is about 20% higher than that of TGG;

Low absorption (< 3000ppm / cm at 1064nm);

High power compatibility;

Low thermal birefringence;

Application:

Faraday rotator

Isolator

Material properties

Chemical formula Tb3Sc2Al3O12

crystal structure

 Cubic
Lattice constant a=12.3Å
Growth method Czochralski
Density 5.91g/cm³

Melting point

 1970±10℃

Range of transmittance

 400-1600nm
Verdet constant 218/152/65@532nm/633nm/1064nm

Technical parameter

Crystal orientation ±15′
Wavefront distortion <λ/8@633nm
Extinction ratio >30dB
Diameter tolerance +0mm/-0.05mm
Length tolerance +0.1mm
Chamfering <0.1*45°
Flatness <λ/10@633nm
Parallelism <30″
Lateral lobe ＜15′
Surface quality 10/5
Coating According to customer requirements
