1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
Specifications
Place of Origin :
China
MOQ :
1 /pcs
Price :
8 /USD /piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/PCS/month
Delivery Time :
3 work days
Packaging Details :
Strong wooden box for Global shipping
Description

Specifications:

1.Heating temperature: 600-1800°C
2. Diameter: 8-54mm
3. Length: 240-4000mm
4. Material: Good quality green SiC powders

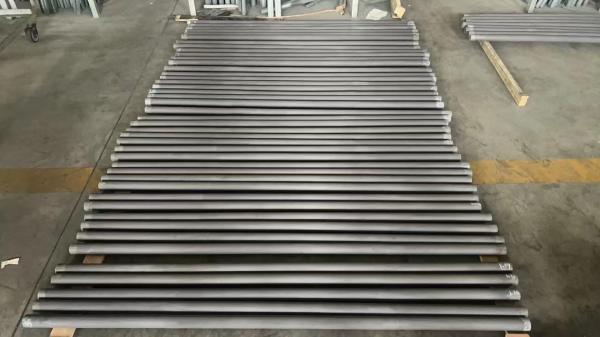

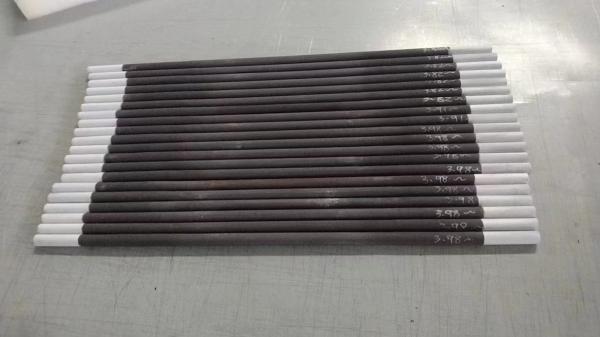

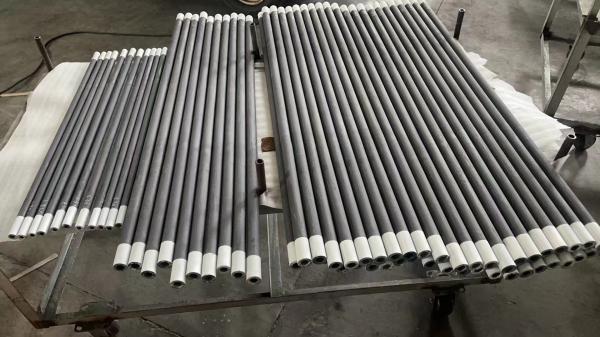

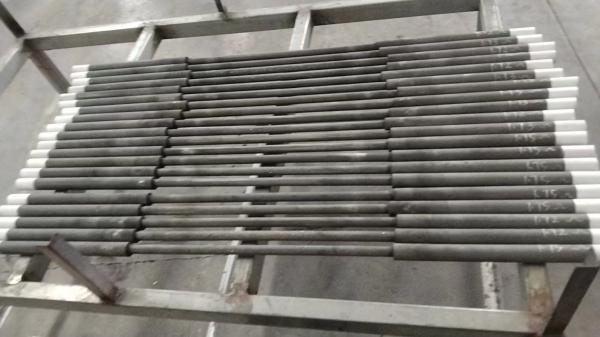

Rod type silicon carbide heating elements are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.

Features:

1. Withstands as high as 1800°C (surface temperature),

2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire,

3. High strength and excellent shock resistance,

4. Heat source is free of noise and air pollution.

SiC heating elements usages:

It is used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.

Physical properties of SiC heating elements:

specific gravity 2.6~2.8g/cm³ bend strength >300kg
hardness >9 MOH′S Tensile strength >150kg/cm³
porosity rate <30% radiancy 0.85

Recommend surface load:

Furnace Temp (°c ) 1100 1200 1300 1350 1400 1450
Surface load of hot zone (W/cm²) <17 <13 <9 <7 <5 <4

When you place order,pls tell us the following data:

1. Outer diameter(OD):mm

2. Length of Hot zone(HZ):mm

3. Length of Cold end(CZ):mm

4. Length of Overall(OL):mm

5. Shank spacing(A):mm

6. Resistance(at 1050C+/-50C):ohms
