Specifications
Place of Origin :
China
MOQ :
1/pcs
Price :
5/usd/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/pcs/month
Delivery Time :
3workdays
Packaging Details :
Strong wooden box for Global shipping
Description

Product details

Silicon carbide heating elements are manufactured from recrystallized high purity alpha silicon carbide rod or tubular form. Optimized structure of SiC particles make it have special characteristics as applied in industry and lab, which have the best service life particularly in oxidation and/or corrosive atmospheres. SIC elements may be mounted either vertically or horizontally at the max. operation temperature 1600℃ without any special supports,the elements will not deform. This provides a flexible furnace design for maximum interior design. Another feature is that elements can be replaced when the furnace is in continuous operation, thus avoiding a shutdown. Its high loading capacity is suitable for low-volume and high power conditions. Therefore, it is widely used in various high temperature electric furnaces and other electric heating devices, such as industrial applications involving magnetic, ceramics, powder metallurgy, glass, metallurgy and machinery.

Physics characters of Silicon carbide heating elements

Bulk density

Porosity

Thermal Conductivity

Rupture strength

Specific Heat

Coefficient of thermal
expansion

2.5 g/cm3

23%

14~19W/m·℃
(1000℃)

50MPa (25℃)

1.0kj/kg·℃ (25~1300℃)

4.5 × 10-6
(1000℃)

SIC elements has type of DH type (equal diameter with higher resistances), DL type (equal
diameter with lower resistances), U type, CU type, M type (door shape), W type (three phase), SG (single spiral), SGR (double spiral), UX type (slot shape), DB type (dumbbell shape), etc.
The rods diameter range from 8mm to 54mm, longest 4300mm, but for SG and SGR type,
the max diameter and length is 75mm and 1000mm.

Type of VINSON SIC heating elements

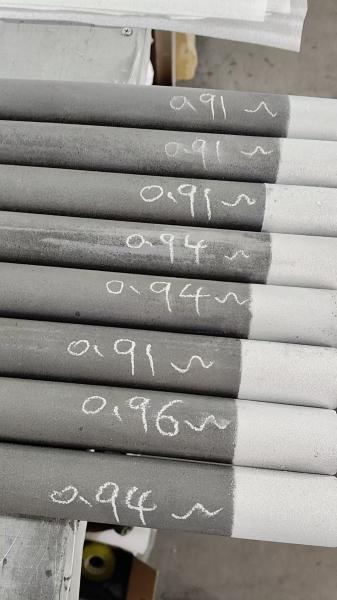

Picture of VINSON SIC heating elements

Order Guide

When you need it, please tell us the following data
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)

Package & Delivery

Package for SIC heating element

Wooden box packed filled with foam inside to avoid damage

FAQ

1.Q:Are you a factory or trading company?
A: Yes we are the factory and have 10 production lines for us.
2.Q:What's the shipping method?
A: International express and sea transportation,Depend on customers.
3.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in Shanghai, you can let your forwarder ship the products for you.
4.Q:What's the Payment method?
A:T/T, 30% deposit before production, the balance before delivery.
We sugguest you transfer the full price at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
5.Q: What is our payment term?
A:We can accept the payment by T/T, Ali Online, Paypal,Credit card and W/U .
6.Q:Can we print our own brand?
A: Yes, Of course.Will be our pleasure to be one your good OEM manufacturer in China to meet your OEM requirements.
7.Q:How to Place an order?
A:Please kinldy send us your order by email , we will confirm the PI with you.
