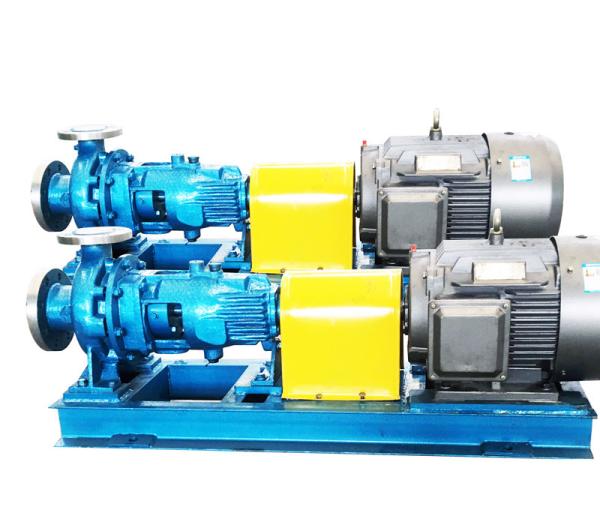

Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design
Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design
Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design
Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Flow Range :
4-2040 m3 / h
Head Range :
2-300m
Speed :
2950r/min、1450r/min
Working Pressure :
Under 3.0 MPA
Seal Type :
Double mechanical seal
Temperature :
<80 degree
Description

Semi Open and Closed Impeller Design Electric Chemical Transfer Pump Split Case Pump

Specification

Discharge Size Inlet Size Capacity Head NPSH
32mm~200mm 50mm~250mm 4～2600m³/h 2～300m 1.4m~3.5m

Main Features


Can be used for continuous or irregular service.
Less costly, yet can handle a wider range of chemicals than any special pumps.
Choice of threaded or flanged fitting available.

Appropriate for highly corrosive liquids.

Provided range facilitate effective solutions for all process industries.

All spare parts interchangeable with most of the International brand pump.

Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design

Details

Accessories Character
Mechanical Seal High temperature resistance, acid and alkali resistance, corrosion resistance, wear rsistance and other characterisics, especially suitable for all kinds of bad environment.
Impeller Ring Professional measuring tools to closely measure the bearing joints to ensure the accuracy to international standards.
Motor Less heat generation, higher operating efficiency and longer service life. No obvious vibration when carring over the flat ground.

Pump Structure

Pump seal a variety of structural forms, the most commonly used is built-in unbalanced single-ended mechanical seal. According to the working conditions, can also use the external, unbalanced or double-sided mechanical seal. Flushing cooling method can be flushing or flushing, you can also install additional sealing device. On the suspended particles or less corrosive media, can also choose to use soft packing seal (flushing or flushing).

Drawings


Electric Chemical Transfer Pump Split Case Pump Semi Open And Closed Impeller Design

102.00

pump body

161.00

pump cover

183.00

Support foot

210.00

shaft

230.00

impeller

320.00

Antifriction bearing

320.01

Antifriction bearing

330.00

Bearing bracket

360.00

Bearing cover

360.01

Bearing cover

400.00

Flat gasket

400.01

Flat gasket

412.00

O ring

412.01

O ring

433.00

Mechanical seal

433.01

Mechanical seal

471.00

Sealing cover

471.01

Sealing cover

502.00

Casing wear ring

502.01

Casing wear ring

502.02

Casing wear ring

503.00

Impeller wear ring

503.01

Impeller wear ring

507.00

deflrctor

507.01

deflector

524.00

sleeve

524.01

sleeve

638.00

Constant-level-oiler

644.00

Lubricating ring

673.00

Vent filter

710.00

pipe

915.00

Threaded insert

922.00

Impeller nut

923.00

Bearing nut

932.00

circlip

Working Medium and Application

  1. Inorganic and organic acids of various temperatures and concentrations

  2. Alkaline solution of various temperature and concentration

  3. Salt solution of various temperature and concentration

  4. Various liquid petrochemical products, organic compounds, corrosive raw materials and products

  5. Chemistry

  6. Food processing

  7. Paper work

  8. Sea water station

  9. Environmental equipment
