Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage
Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage
Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage
Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
WDL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Theory :
Centrifugal Pump
Max Flow :
450m3/h
Max Head :
120m
Speed :
1500rpm
Voltage :
Requirements
Warranty :
1 Year
Flange :
Customized
Description

Factory Customized High Pressure Stainless Steel Pump Vertical Multistage Centrifugal Pump

Product Description

WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.

Product Data

  • Structure: single-stage pump
  • Capacity: 8 ~ 450m³/h
  • Head: 15 ~ 120m
  • Maximal Efficiency: 70%
  • Diameter:200mm~470mm
  • Pressure:1.6MPa
  • Temperature: -50℃~80℃
  • Motor Power:5.5~160KW
  • RPM: 1450 r/min

Technical Parameter

model

flow

(m³/h)

Head

(m)

Rotating speed

(r/min)

Highest efficiency

(%)

pump head weight

KG

Submerged depth

mm

 Shaft component
40WDL-250 8-20 15-28 1450 39 620 1300/1000 100
40WDL-310 8-40 23-42 1450 45 692 1300/1000 100
40WDL-350 8-45 35-54 1450 37 870 1300/1000 120
50WDL-250 10-30 15-28 1450 40 642 1300/1000 100
50WDL-310 15-60 25-42 1450 45 705 1300/1000 100
50WDL-350 15-70 35-54 1450 50 886 1300/1000 120
50WDL-400 20-75 50-75 1450 45 961 1300/1000 120
65WDL-250 30-70 15-28 1450 48 652 1300/1000 100
65WDL-310 30-90 25-40 1450 57 905 1300/1000 120
65WDL-350 40-100 35-54 1450 59 915 1300/1000 120
65WDL-400 50-120 45-75 1450 55 1008 1300/1000 120
65WDL-450 50-120 70-95 1450 52 1075 1300/1000 120
80WDL-250 70-100 15-25 1450 61 652 1300/1000 100
80WDL-310 70-120 25-40 1450 62 935 1300/1000 120
80WDL-350 70-160 35-52 1450 65 940 1300/1000 120
80WDL-400 70-160 50-75 1450 62 1068 1300/1000 120
80WDL-450 70-160 70-95 1450 60 1100 1300/1000 120
100WDL-310 100-150 20-38 1450 65 960 1300/1000 120
100WDL-350 100-220 35-50 1450 65 970 1300/1000 120
100WDL-400 100-220 40-72 1450 65 1125 1300/1000 120
125WDL-310 120-260 18-36 1450 67 1025 1300/1000 120
125WDL-350 120-300 35-50 1450 68 1035 1300/1000 120
125WDL-400 140-350 45-70 1450 70 1206 1300/1000 120
125WDL-450 150-360 65-90 1450 67 1497 1300/1000 140
150WDL-310 200-400 18-35 1450 72 1127 1300/1000 120
150WDL-350 200-450 25-48 1450 75 1175 1300/1000 120
150WDL-400 200-450 40-65 1450 73 1668 1300/1000 140

Features

  • WDL series anti-corrosion and wear-resistant horizontal centrifugal pump adopts CAD modular structure design, more than 20 models, only 5 bearing bodies. The parts of the same series have great interchangeability. The inlet and outlet flanges of WDL pumps follow the standard of HG20592-2000PN16Mpa, and different flange standards can be implemented according to user requirements.
  • The bearing is grease-lubricated, equipped with large grease storage space. The two ends of the lower bearing are respectively sealed with lip-type oil-resistant rubber and oil retaining disc. The upper ends of the upper bearing are respectively sealed with lip-type oil-resistant rubber and felt, which can make the grease remains clean
  • The whole unit is installed on the base. The base is made of integral thick steel plate with good rigidity, high strength, anti-deformation and easy installation.

Installation Dimension

Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage

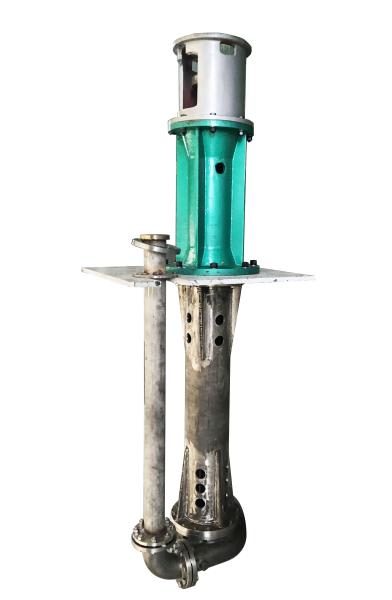

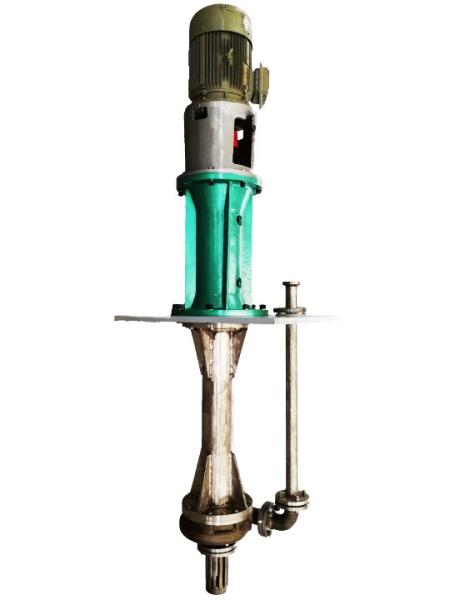

Product Picture

Customized High Pressure Vertical Centrifugal Pump Stainless Steel Multistage

Service

*Quick reply

*Professional engineer.

*Good package

*Fast after-service
