Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage
Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage
Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage
Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZW
Place of Origin :
SIchuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Theory :
Axial Flow Pump
Flow :
500-13000m3/h
Head :
2-8m
Pressure :
Low Pressure
Voltage :
380V/Customized
Color :
Customized
Feature :
Large Flow
Name :
Propeller Elbow Pump
Description

Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage


Technical Parameter

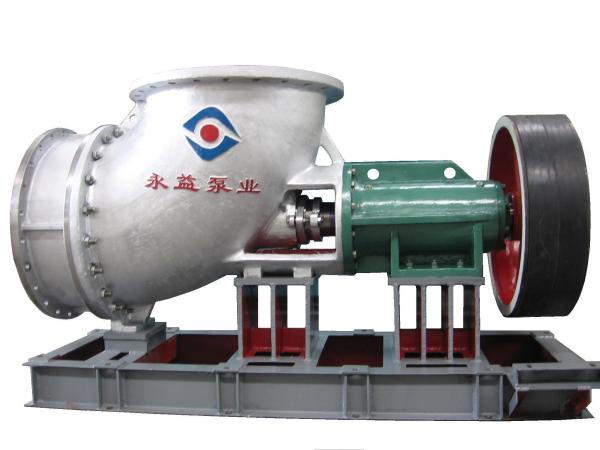

ZW-series Horizontal Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW
1 ZW300 800-1000 2-8 600-1450 40-50
2 ZW350 800-1200 2-6 600-1450 40-55
3 ZW400 1000-2000 2-8 600-1000 45-60
4 ZW500 1500-3200 2-7 570-980 50-65
5 ZW600 2000-3500 2-7 300-750 50-65
6 ZW700 3000-6000 2-7 300-600 60-70
7 ZW760 4000-7600 2-6 300-600 60-70
8 ZW820 5000-9000 2-5 200-500 60-73
9 ZW1100 8000-13000 2-6.5 200-475 65-75

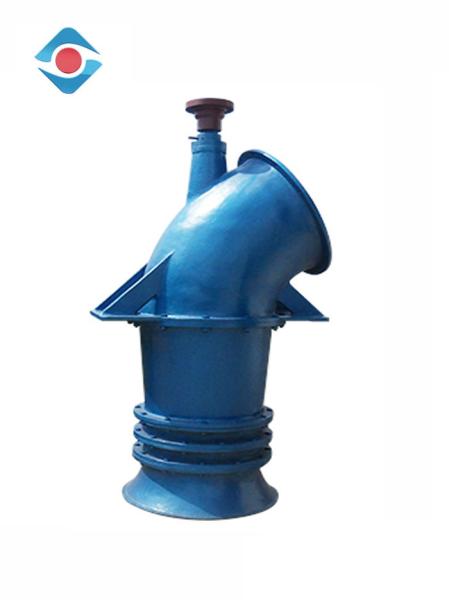

ZL-series Vertical Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW
1 ZL300 500-800 2-8 600-1450 40-50
2 ZL350 550-1000 2-8 600-1450 40-55
3 Zl400 600-1600 2-8 600-1000 45-60
4 ZL500 1200-2200 2-6 570-750 50-65
5 ZL600 2000-3000 2-6 300-750 50-65
6 ZL700 3000-6000 1-5 300-600 60-70
7 ZL800 5000-9000 1-5 200-500 60-73
8 ZL950 6000-11000 1-4 200-500 60-77
9 ZL1050 8000-12000 1-4 100-400 64-77
10 ZL1300 9000-15000 1-3 100-300 65-78

Specification Range

Model: ZW-series horizontal axial pump
Discharge Size:300mm~1300mm
Inlet Size:300mm~1300mm
Capacity:800～13000m³/h
Head:2～8m
Maximal Efficiency:73%
NPSH:0m~1m
Allowed Max Particle Size:20 mm
Seal Type:mechanical seal/dynamic seal/packing seal

Structure

Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage

Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage

1 Impeller nut 8 Packing room 15 coupling 22 framework oil seal 29 filler
2 Sealing cover 9 Bearing base 16 coupling 23 Lower bearing upper cover 30 Sealing cover
3 joint 10 framework oil seal 17 motor 24 Lower bearing lower cover 31 impeller
4 sheath 11 lower bearing 18 Round nut 25 Packing cover
5 shaft 12 base 19 upper bearing cover 26 nozzle
6 sleeve 13 Motor base 20 upper bearing 27 Water seal ring
7 Pump body 14 Oil pointer 21 Bearing case 28 Pump cover

Features

◆ With high efficiency and good anti-cavitation performance,it is used in transporting high temperature liquid without solid particles.

◆ The corrosion-resistant degree is depended on the material of the parts, temperature of transmission medium is ～+120℃.

Application

1, chemical industry;

2, synthetic fiber industry;

3, dyeing industry;

4, papermaking industry;

5, building industry;

6, plastic and rubber industry;

Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage

Service

*Professional engineer and workers

*Enquiry will be replied within 8 working hours

*Standard fumigation free export wooden case

*Support OEM or ODM

Chemical Horizontal Axial Flow Pump , Forced Circulation Pump Single Stage
