Horizontal Carbon Fiber Acid Transfer Pumps High Performance Wear Resistance

Product Description

The new carbon fiber composite material is our self-developed high-strength composite material, and has obtained national invention patent (patent number ZL201310597859.0, ZL201310343890.1). This material, based on carbon fiber and silicon carbide, with US imported special cross-linking agent, is made by chemically reacting at high temperature, and has extreme high corrosion resistance and wear resistance. The hardness of silicon carbide is almost as high as that of the diamond, so it has excellent wear resistance. Carbon fiber can improve the toughness of material to meet the flexural performance.

Technical Parameter

Application of Scope

Mainly used in industries of chemical industry, petrochemical industry, oil refinery, coal chemical industry, power plant, paper making industry, pharmaceutical industry, sugar industry, food industry, steel plant, waste acid treatment, water supply and drainage, urban water supply, grain deep processing etc.

Advantage

Comparison to Other Material

A contrast test between carbon fiber composite material and material 2507: under the same condition, medium: F, CI>800ppm, containing 12%sulfuric acid and 30%solid content, and its temperature is 90℃

1) Metal materials have relatively low corrosion resistance and wear resistance

Pump Design Feature

• Single-stage single suction horizontal centrifugal pump
• Closed impeller, twisted blades, all heavy-duty design, ensure the good hydraulic performance
• The single-end mechanical seal adopts an external structure to ensure that all parts in contact with the liquid are non-metallic materials.
• Special impeller positioning method can ensure the safety of the impeller, and It is very easy to assemble and disassemble
• Flow passage components are all made of new carbon fiber composite materials
• The bearing box structure and the movable rotor component ensure the pump always runs at the best condition

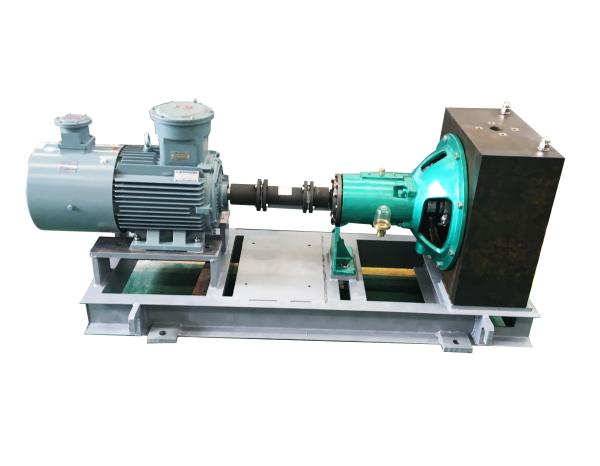

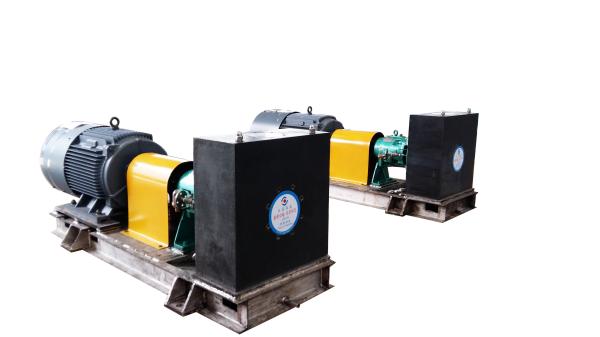

Product Picture
