Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
YYTL
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Theory :
Mix Flow Pump
Flow :
200-6500m3/h
Head :
8-25m
Impeller :
Closed/ Semi Open
Brand :
Chengdu Yongyi
Pressure :
1.6MPa
Flange :
Customized
Condition :
New
Name :
Flue Gas Desulphurization Pump
Description

Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve

Performance Data

  1. Capacity: 200-6500 m³/h
  2. Head: 8-25 m
  3. Maximal Efficiency: 90.2%
  4. NPSH: 3.2m~9.6m
  5. Allowed Max Particle Size: 20 mm
  6. Seal Type: mechanical seal/dynamic seal/packing seal
  7. RPM: 1450 r/min

Structure

Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve

1 Round nut 2 Rear bearing cover 3 Adjustment screw 4 Rear bearing 5 Ventilation plug
6 Front bearing 7 Front bearing cover 8 Water retaining plate 9 bolt 10 O ring
11 Pump cover 12 Mechanical seal 13 Pump body 14 impeller 15 Impeller nut
16 bolt 17 O ring 18 Lock screw 19 Front cover 20 O ring
21 O ring 22 key 23 O ring 24 Bearing body 25 Cooling water gland
26 Oil pointer 27 shaft 28 Cooling water pipe 29 Nearing box 30 Support blade
31 O ring 32 Framework oil seal 33 spacer sleeve 34 key

Features

  • Single-stage single-suction horizontal centrifugal pump mainly used as circulating pump in the absortion tower of the wet FGD(Flue Gas Desulphurization) devices.
  • It is suitable for low PH condition, especially for flue gas. It can also be used for low-sour condition and desulfurization installation.
  • The wearing parts adopted with CFD(Computational Fluid Dynamics) resulting design reliability and high efficiency
  • The position of the impeller can be changed by adjusting the bearing assembly.
  • The pump is back dismantled so that the users needn't dismantle the pipe connection when maintaining or repairing.

Application

In metallurgical, mining, and coal industrial sectors, YYTL-series desulfurization pumps can be used to transfer corrosive liquid containing small solid particles and can also be used for municipal sewage and river dredge.

Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve

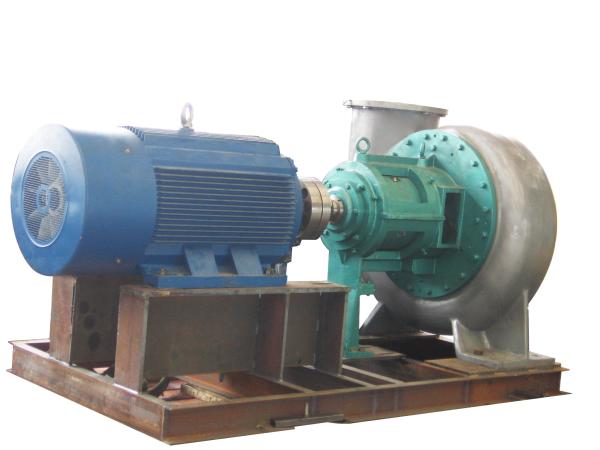

Product Picture

Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve

Radial Subdivision Flue Gas Desulphurization Pump End Suction with Spacer Sleeve
