High Chrome Cantilevered Horizontal Centrifugal Slurry Pump for High Density Slurries

Features

1. High strength high chrome material: excellent high pressure strength and safety

2. Front pump casing: easy access maintenance

3. Shaft deflection: large diameter shaft with minimal overhang

4. Common slurry pump design: fully interchangeable

5. Low power consumption: high efficiency hydraulic design

Product Details

Discharge Size:20mm~350mm

NPSH:0m~3m
Inlet Size:32mm~400mm

Allowed Max Particle Size:20 mm
Capacity:4 ~ 3000 m³/h
Head:10 ~ 130 m
Maximal Efficiency:70%

RPM:1450 r/min

Seal type

(1) Expeller and stuffing box combined seal : Expeller seal make use of the pressure which is caused by the impeller and expeller working together to seal. Packing and lip seal do as the parking sealing. We can use this kind of seal in the single stage pump of which the positive pressure in the suction is not bigger with 10% than that in the discharge, or used in the first stage pump in series condition. It can work without the seal water, will not dilution the slurry and sealing performance good. But this can lead to more power consumption (usually need increase 5% of the shaft power).

(2) Stuffing box packing seal is a kind of popular shaft seal type and used in all kind of applications, seal material can be PTFE and graphite which can be used in corrosive and high temperature conditions. This seal type has advantage of simple structure and easy maintenance.

(3) Mechanical seal : this kind of seal adopt the international advanced sealing technology and has good sealing performance. Different structure type can suit different working condition, friction auxiliary material is made of high hardness ceramic and alloy material. The design and cooperation between mechanical seal and seal box conform to the flow status of medium which makes seal performance higher capability in anti-resistant and anti-shock, which can make customer satisfied in all kind of working condition.

General Application

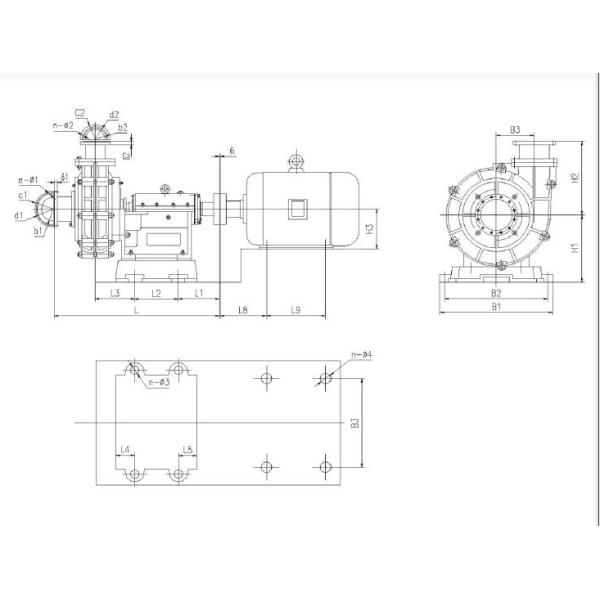

Installation Dimension

Single base

Sharing Base

Why Choose Us

A.more than 20 years experiences manufacturer

B.Good quality with competitive pirce

C.ISO2000, CE certificate, CCS certificate

D. Professional after-sales service
