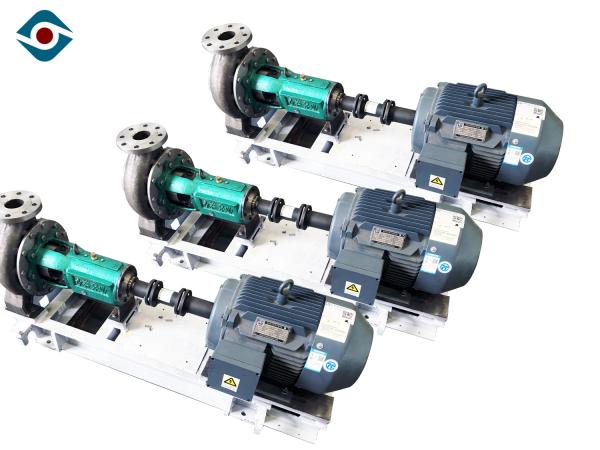

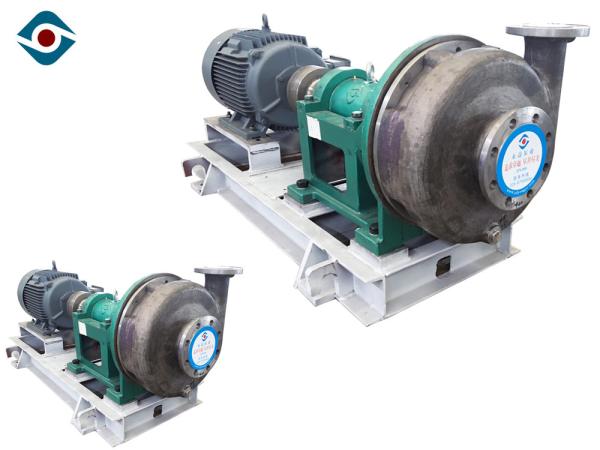

Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry
Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry
Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry
Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
WD
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Max Flow :
1000m3/h
Max Head :
120m
Appearance :
Customized
Color :
Customized
Application :
Citrculating, Transfer Slurry
Effiency :
Up to 70%
Description

Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry

Brief Introduction

Impeller type: a semi-open impeller allow for passage of larger solid sizes

a totally enclosed impeller to meet high efficiency standards.

Several seal: mechanical seal and packing seal are both availble.

Wetted parts: special duplex stainless steel F33 is used and it maximizes corrosion protection in chemical slurry transfer. 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, Hastelloy, K alloy, 20# alloy, LEWMET85# alloy, etc. are also avaiable.

Features

  • ♦ Steady delivery without pulsation,little vibration and noise.
  • ♦ Outstanding self-priming ability.
  • ♦ The pump can deliver the varied corrosion mediums if the proper material of parts selected.
  • ♦ The same rotary direction of internal rotor and outside rotor results in little wear and long operation life.
  • ♦ The pump’s flow capacity can be changed through adjusting the speed.
  • ♦ It’s specially suited to deliver high viscosity medium.

Application

a. High efficiency centrifugal chemical pump is widely applicable for chemical industry.

b. Widely applicable for power station.

c. Widely applicable for paper making.

d. Widely applicable for pharmaceuticals.

e. Widely applicable for refine sugar.

f. Widely applicable for environmental protection.

Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry

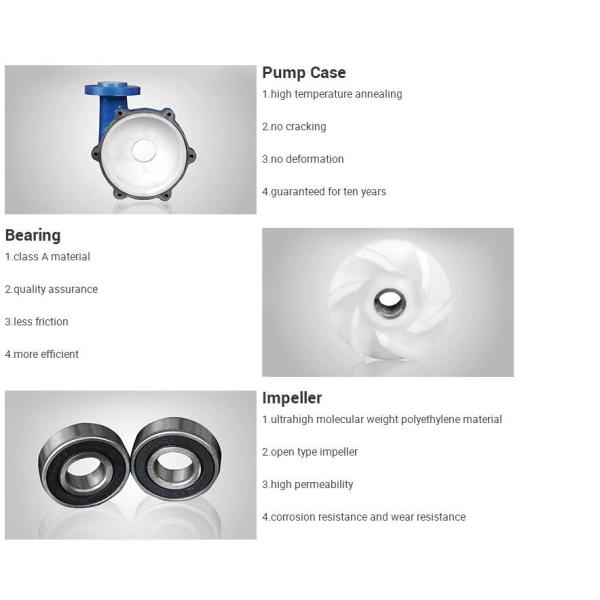

Product Details


Horizontal Single Stage Centrifugal Chemical Pump For Paper And Pulp Industry

Technical Parameter

model Clean Water Performance

flow

(m3/h)

head

(m)

speed

(r/min)

maximum

efficiency

(%)

NPSH

(NPSHr)

m

pump head weight

KG

 shaft component
40WD-250 8-20 15-28 1450 39 0.6 141 45
40WD-310 8-40 23-42 1450 45 1 257 55
40WD-350 8-45 35-54 1450 37 1 271 55
50WD-250 10-30 15-28 1450 40 0.7 146 45
50WD-310 15-60 25-42 1450 45 1.1 262 55
50WD-350 15-70 35-54 1450 50 1.1 286 55
50WD-400 20-75 50-75 1450 45 1.1 483 70
65WD-250 30-70 15-28 1450 48 1.1 149 45
65WD-310 30-90 25-40 1450 57 1.4 274 55
65WD-350 40-100 35-54 1450 59 1.5 280 55
65WD-400 50-120 45-75 1450 55 1.7 495 70
65WD-450 50-120 70-95 1450 52 1.7 524 70
80WD-250 70-100 15-25 1450 61 1.5 153 45
80WD-310 70-120 25-40 1450 62 1.7 288 55
80WD-350 70-160 35-52 1450 65 2.0 295 55
80WD-400 70-160 50-75 1450 62 2.0 500 70
80WD-450 70-160 70-95 1450 60 2.0 539 70
100WD-310 100-150 20-38 1450 65 1.9 293 55
100WD-350 100-220 35-50 1450 65 2.5 299 55
100WD-400 100-220 40-72 1450 65 2.5 529 70
125WD-310 120-260 18-36 1450 67 2.8 304 55
125WD-350 120-300 35-50 1450 68 3.2 307 55
125WD-400 140-350 45-70 1450 70 3.4 559 70
125WD-450 150-360 65-90 1450 67 3.6 741 80
150WD-310 200-400 18-35 1450 72 3.8 332 55
150WD-350 200-450 15-48 1450 75 4.2 333 55
150WD-400 200-450 40-65 1450 73 4.2 597 70
150WD-450 200-500 60-80 1450 67 4.5 753 80
200WD-350 300-600 28-47 1450 79 5 583 70
200WD-430 300-650 50-65 1450 75 5.2 765 80
250WD-350 400-900 26-45 1450 79 6.5 850 80
250WD-430 400-900 50-61 1450 75 6.5 910 90
