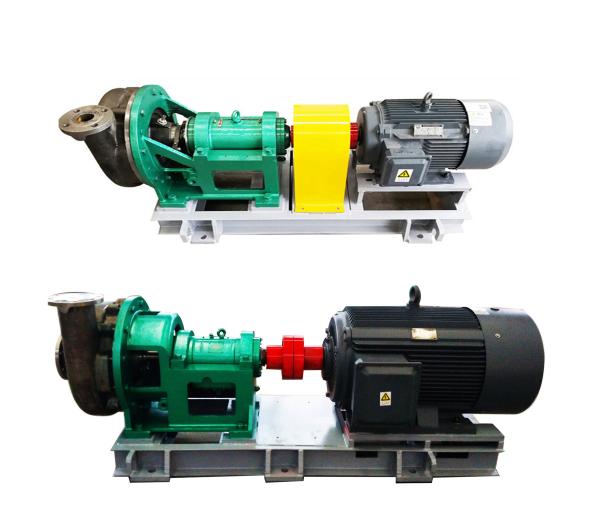

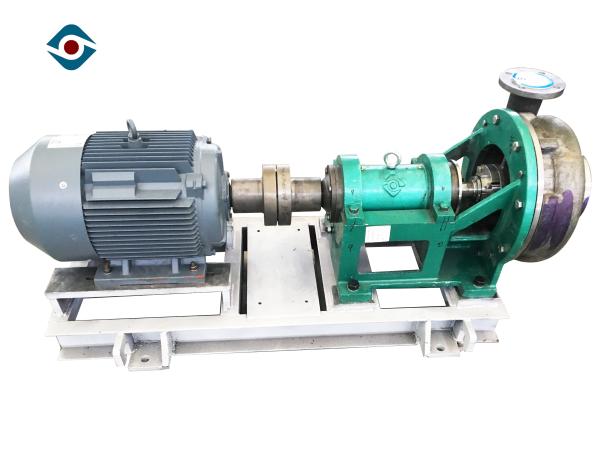

30 hp Industrial Chemical Pumps Stainless Steel Anti Corrosive Pump with Back Blade

Product Details

Capacity:8 ~ 800 m³/h
Head:10 ~ 90 m
Maximal Efficiency:70%
Diameter:200mm~470mm
NPSH:1.4m~4.5m
Allowable Max Motor Power:315 kw
Allowed Max Particle Size:20 mm
Seal Type:Mechanical seal/ dynamic seal/ packing seal
Pump Weight:up to 3000kg
RPM:1450 r/min
Material:Metal (according to working conditions )

Brief Introduction

• WD-series pumps are horizontal corrosion-resistant centrifugal pumps, with spacious impeller flow channel and superior hydraulic performance.
• WD-series pump is a centrifugal pump of horizontal, single stage, single suction, cantilever design, its performance parameters conform to GB T5662 standard(corresponding to IS02858)Adopting advanced hydraulic design.the pump possesses higher hydraulic efficiency.
• The back shroud of impeller is equipped with back blade, which can reduce media leakage.
• Axial adjusting device is equipped to adjust the space between impeller and pump body.
• Variable types of shaft seal (including mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal) are adopted to meet the shaft sealing requirements for carrying variable media.
• Variable mechanical seal is developed and applied successfully to the industries of soda, chlorine-alkali: salt-making,metallurgy, paper-making and environmental protection

Features

♦ Steady delivery without pulsation,little vibration and noise

♦ Outstanding self-priming ability

♦ Suitable to transfer various corrosion mediums

♦ Little wear and long operation life

♦ Changable flow capacity

Installation Dimension

More Details

FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
