Vertical Centrifugal Industrial Sewage Pumps , Submersible Mud Pump Single Stage

Main Usage

· Mining

· Civil Construction

· Industry

· Coal Preperation

· Mineral Processing

· Chemical Precessing

Product Features

a) Wear parts are all constructed with abrasion resistant materials - chromium alloy, so pumps have better stability & longer service life.

b) Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.

c) Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.

d) In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.

e) Professional technology support is provided during the whole process of the usage and maintenance.

Technical Parameter

Parameter Range

	Model: ZJL-series vertical slurry pump
	Discharge Size: 40mm~200mm
	Inlet Size: 50mm~250mm
	Capacity: 6 ~ 364m³/h
	Head: 4 ~ 60 m
	Maximal Efficiency: 70%
	NPSH: 1.4m~3.5m
	Allowable Max Motor Power: 315 kw
Impeller	Allowed Max Particle Size: 20 mm
Vanes: 5/6	Seal Type: /
Type: closed/ half open	Pump Weight:up to 3000kg
Material:Metal (according to working conditions )	RPM: 1450 r/min

Structure

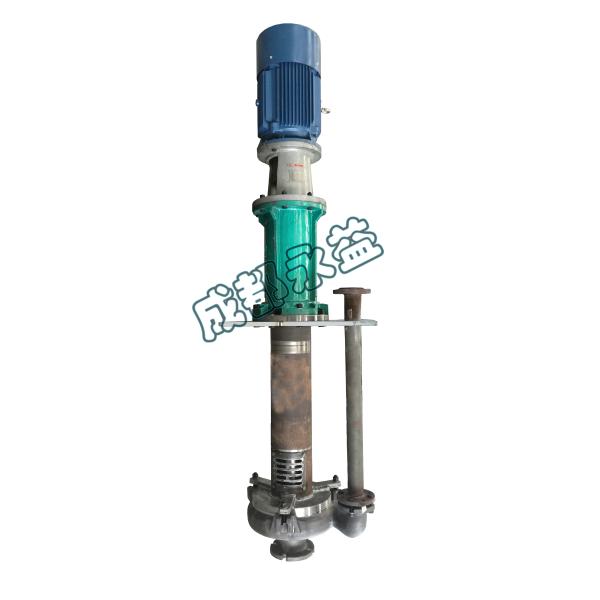

Product Picture

Installation Dimension

FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
