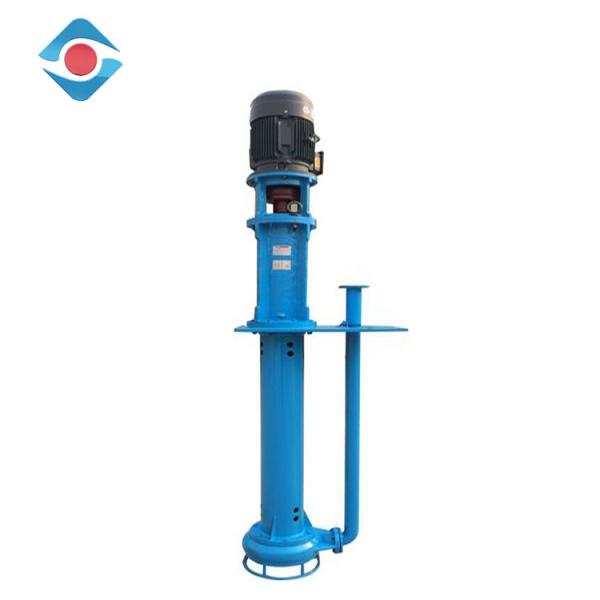

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Certification :
ISO9001
Flow :
6 ~ 364m ³ / h
Head :
6～58m
Material :
Corrosive Resistance Material
Color :
Customized
Flange :
Customized
Voltage :
380V
Structure :
Single-stage Pump
Motor :
Vertical type
Description

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining

Product Summarize

a. ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump.

b. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss.

c. Geometrical shape of its flow passage components is suitable for flow condition of medium.

d. High wear resistance, corrosion resistance and impact resistance material is used for flow passage components to improve service life.

Application

♦Mining

gold mining,copper mining,coal mining,iron mining, tin mining, sand mining, and so on

♦ Factories

alumina factory,coal factory, suger factory,chemical factory,water treatment factory.cement factory and so on

♦ Mineral, Dredging

sand booster application, Mineral processing, and dewatering work

Specification

Type ZJL
Capacity (m3/h) 6 ~ 364
Head (m) 4 ~ 60
Speed (r/min) 1450-2900
NPSHr (m) 1.4~3.5
Eff. (%) 60~85
Dia Inlet (mm) 50~250
Dia Outlet (mm) 40-200

Feature

1. Stable performance, reliable operation;
2. Suitable for corrosive fluid
3. Coupling connection construction: convenient for maintenance and trouble shooting.
4. Optional open / Semi-open/Closed impeller

Structure

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining

1

Volute casing

2

support

3

Motor base

4

Impeller

5

Left support plate

6

Discharge pipe

7

Rear liner plate

8

Bearing body

9

Right support plate


Product Picture and Details

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining

FAQ

High Pressure Submerisble Vertical Slurry Pump / Industrial Sump Pump For Mining
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
