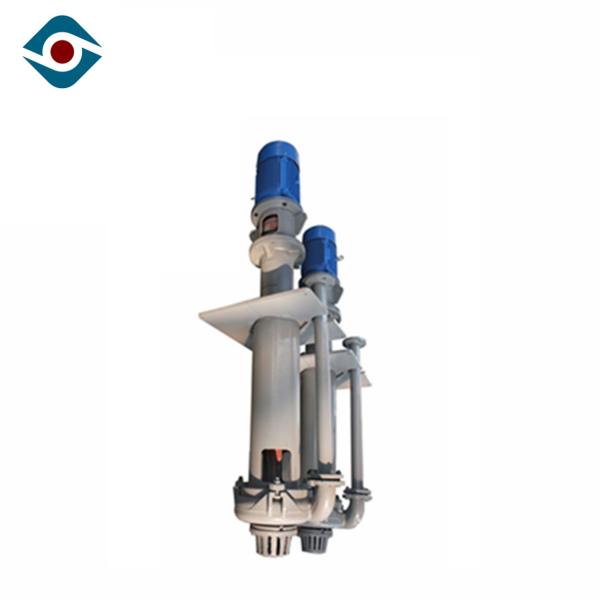

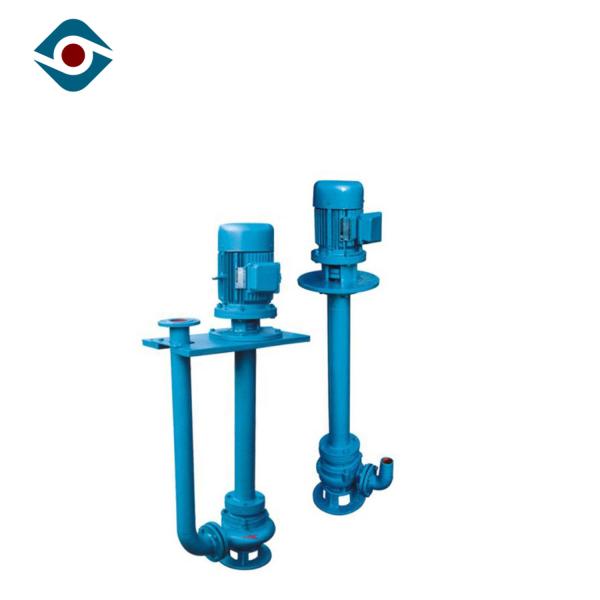

Submerisble Vertical Industrial Slurry Pumps Cantilever Type For Mining

Main Usage

Durable slurry pump is suited for handling abrasive or corrosive, dense slurry with large particle size, vertical submersible slurry pump are mainly applicable to transport abrasive, coarse particle, high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments.

Parameter Range

Product Features

CANTILEVERED SHAFT

• The standard ZJL pumps feature a cantilevered shaft which is up to 2400mm long. The cantilevered shaft means that there is no shaft sealing requirement and the drive end bearings do not come into contact with any pumped product. This reduces the risk of bearing failure and extends the wear life of the pumps.

HEAVY DUTY WET END

• Wet end components are manufactured from high quality 27% chrome white iron or rubber coated steel for exceptional wear resistance and service life with minimal corrosion. The heavy duty design can pump high density and abraisive slurries and the large passages of the impeller allows the transfer of large particles without blockages in a wide range of mining, processing and heavy industrial applications. Wet end stub shaft options are available to suit severe duty applications.

COLUMN AND DISCHARGE PIPES

• Column and discharge pipes are available in a range of materials to suit the requirements of operators. Standard options include mild steel and rubber lined mild steel. Composite options are available.

VERSATILE DRIVE OPTIONS

• Pumps can be directly driven using electric motors or belt driven with either set speed or variable speed operation.

REMOVABLE STRAINERS

• Pumps feature rubber or cast iron upper strainers and cast iron lower strainers to prevent blockages. The strainers are easily removed for servicing or replacement.

Material

Structure

Product and Details

Quality Control

Certifications
