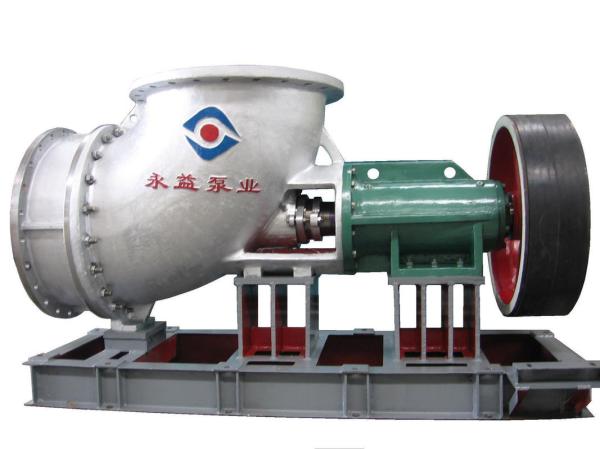

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity
Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity
Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity
Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZW
Place of Origin :
SIchuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
IS09001
Theory :
Axial Flow Pump
Max Flow :
13000m3/h
Max Head :
8m
DN :
300-1100mm
Voltage :
380V/Customized
Warranty :
1 Year
Feature :
Large Flow
Standard or nonstandard :
Standard
Description

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity

Advantages

• Adopting excellent hydraulic model abroad

• Adopting advanced computer simulation analysis technology (Pro/E and other software platforms)

• Excellent performance and high reliability and stability

• Foot support, cantilever rotor, excellent hydraulic structure, advanced shaft seal form, low speed type operation

• High efficiency, high efficiency zone and good anti-cavitation performance.

Structure

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity

1 Impeller nut 8 Packing room 15 coupling 22 framework oil seal 29 filler
2 Sealing cover 9 Bearing base 16 coupling 23 Lower bearing upper cover 30 Sealing cover
3 joint 10 framework oil seal 17 motor 24 Lower bearing lower cover 31 impeller
4 sheath 11 lower bearing 18 Round nut 25 Packing cover
5 shaft 12 base 19 upper bearing cover 26 nozzle
6 sleeve 13 Motor base 20 upper bearing 27 Water seal ring
7 Pump body 14 Oil pointer 21 Bearing case 28 Pump cover

Transfer Method

  1. Direct connection: the pump and the motor are directly connected through the elastic pin coupling
  2. Belt drive: Change the speed to adjust the pump performance through the V-belt drive.
  3. Reducer: Reduce speed through reducer, suitable for high power pump

Pictures

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity

Technical Parameter

ZW-series Horizontal Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW
1 ZW300 800-1000 2-8 600-1450 40-50
2 ZW350 800-1200 2-6 600-1450 40-55
3 ZW400 1000-2000 2-8 600-1000 45-60
4 ZW500 1500-3200 2-7 570-980 50-65
5 ZW600 2000-3500 2-7 300-750 50-65
6 ZW700 3000-6000 2-7 300-600 60-70
7 ZW760 4000-7600 2-6 300-600 60-70
8 ZW820 5000-9000 2-5 200-500 60-73
9 ZW1100 8000-13000 2-6.5 200-475 65-75

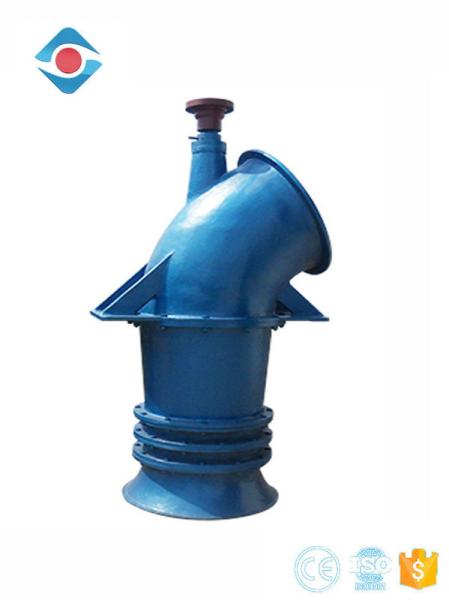

ZL-series Vertical Axial Flow Pump

No. Model

Flow

m3/h

Head

m

Rotating speed

r/min

Motor Power

KW
1 ZL300 500-800 2-8 600-1450 40-50
2 ZL350 550-1000 2-8 600-1450 40-55
3 Zl400 600-1600 2-8 600-1000 45-60
4 ZL500 1200-2200 2-6 570-750 50-65
5 ZL600 2000-3000 2-6 300-750 50-65
6 ZL700 3000-6000 1-5 300-600 60-70
7 ZL800 5000-9000 1-5 200-500 60-73
8 ZL950 6000-11000 1-4 200-500 60-77
9 ZL1050 8000-12000 1-4 100-400 64-77
10 ZL1300 9000-15000 1-3 100-300 65-78

FAQ

Horizontal Axial Flow Propeller Pump , Centrifugal Axial Flow Pumps High Capacity
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
