Vertical / Horizontal Axial Flow Pump Irrigation Pump Single Suction High Reliability

Brief Introduction

ZW-series chemical axial flow pump is single-stage cantilever pump. It adopts front-open door structure. This structure is very simple and convenient for maintaining, because pump body and pipeline are not needed to be disassembled. Pump body is supported from its middle; alignment of rotor is good; packing seal is adopted, when specially required, mechanical seal can be adopted for seal. Impeller and suction nozzle match very well. When transferring abrasive materials, the only thing need to do is to change impeller and suction nozzle. In this way, the service life of pump body is increased.

Feature

1. excellent performance and high reliability

2. good anti-cavitation performance

3. cantilever rotor, front opening structure
4. supported from the middle of the pump body
5. packing seals and mechanical seals
6. impeller can be reversed to change the flow direction of the medium

Performance Data

Flow: 800 ~ 13000m ³ / h

Head: 2 ~ 8m.

DN:300-1100mm

Pressure: 1.0MPa

Temperature: -50℃-+150℃

Structure

Application

1. Phosphate compound fertilizer industry: convey corrosive media containing solid particles, such as flash cooling, phosphoric acid concentration and other stations.
2. Alumina industry, non-ferrous metallurgy industry: lye concentration cycle.
3. Chemical, alkali, salt industry: concentrated cycle station.
4. Papermaking, light industry: concentrated circulation station.

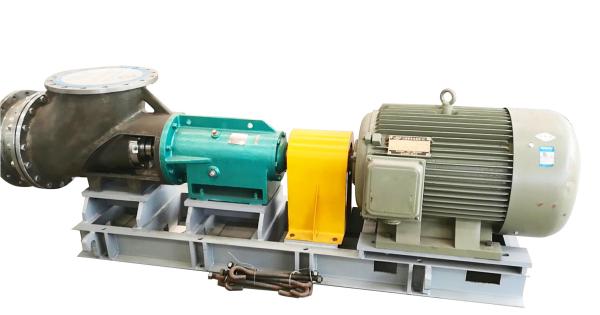

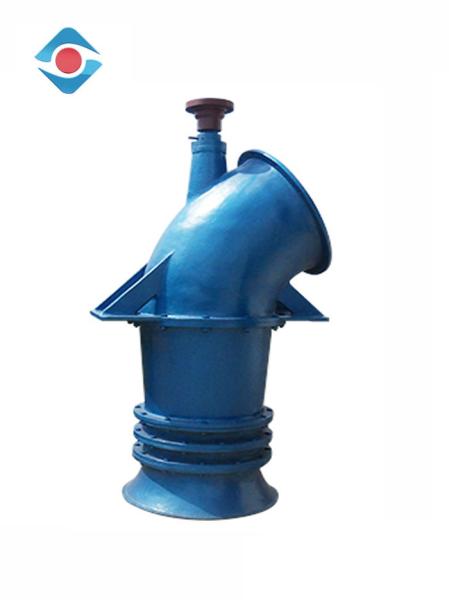

Product Picture

Our Services

1. Any inquires will be replied within 8 working hours.
2. Professional centrifugal pump manufacturer, welcome to visit our website (on-line store) and factory.
3. Customized design is available, OEM and ODM are welcomed.
4. High quality, reasonable & competitive price.
5. Fast lead time, 5-25days for bulk pump production.​

​
