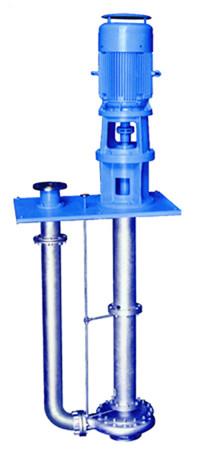

Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump
Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump
Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump
Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZAL
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Max. Flow :
500m3/h, 139l/s
Max. Head :
70 meters
Usage :
Mud or fluid with solids
Caliber :
DN 160mm~650mm
Material :
Cast iron and stainless steel
Description

Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump

Product Description

ZAL-series pump is single stage, single-suction, vertical submerged centrifugal pump with Long shaft. This pump is designed according to standard IS05199. Pump shaft is supported by sliding bearings in pump cover and sliding bearing body; upper bearing adopts anti-abrasive bearing and lubricated by lithium base grease.

Technical Parameter

Model rotate speed n=2950r/min rotate speed n=1475r/min
Flow (m3/h) Head (m) ρ=1 ρ=1.35

Flow

(m3/h)

 Head
(m)		 ρ=1 ρ=1.35
Motor power
(KW)		 Motor power
(KW)
ZAL25-200 7.5-11.5 28-49 2.2-5.5 3-7.5 4-5.8 6.5-12 0.75-1.1 0.75-1.1
ZAL25-250 10.8-12.5 46-78 5.5-11 7.5-15 5.4-6.3 11.5-19.5 1.1-1.5 1.5-2.2
ZAL25-315 15.3-20 74-130 15-30 22-37 7.6-10 18.5-32 2.2-3 2.2-4
ZAL40-160 20-28 16-33 2.2-5.5 3-7.5 9.5-14 4.5-8 0.75-1.1 0.75-1.1
ZAL40-200 18-29 20-53 4-11 5.5-15 9.5-14.5 7-13 1.1-1.5 1.1-2.2
ZAL40-250 21-32 47-78 7.5-18.5 11-22 10.5-16 11-19.5 1.1-3 1.5-4
ZAL40-315 29-42 61-115 15-37 22-45 15-21 15-29 3-5.5 4-7.5
ZAL50-160 31-50 17-34 3-11 4-15 16.5-25 4-8.4 0.75-1.5 1.1-2.2
ZAL50-200 43-62 28-82 7.5-18.5 11-22 22-31 7-13 1.1-3 1.5-3
ZAL50-250 50-70 45-82 15-30 18.5-37 26-35 11-20 2.2-4 3-5.5
ZAL50-315 57-87 57-115 22-55 30-75 30-44 14-28 3-11 4-11
ZAL50-400 60-82 102-194 45-110 75-160 30-41 25-48 7.5-15 11-22
ZAL80-160 66-94 17-32 5.5-15 7.5-18.5 34-47 4-8 1.1-2.2 1.1-3
ZAL80-200 70-103 30-54 11-30 15-37 36-51 7.5-12.5 1.5-4 2.2-5.5
ZAL80-250 87-127 45-82 22-45 30-75 46-64 11-20 3-7.5 4-11
ZAL40-315 90-141 74-127 37-90 45-132 45-70 18-33 5.5-15 7.5-18.5
ZAL80-400 116-171 95-187 75-160 90-220 53-85 25-46 11-22 15-30
ZAL100-160 110-162 12-29 7.5-22 11-30 55-81 3-7.2 1.1-3 1.5-4
ZAL100-200 135-193 26-50 18.5-45 30-55 70-95 6-12.5 3-5.5 3-7.5
ZAL100-250 170-230 44-79 37-75 45-90 90-115 10-20 5.5-11 7.5-15
ZAL100-315 170-250 71-126 75-132 75-200 86-125 17.5-31 11-18.5 11-30
ZAL100-400 224-300 105-194 110-250 160-355 115-150 26-48 15-37 22-45
ZAL150-250 310-190 40-74 55-110 75-160 155-195 10-18.5 11-15 11-22
ZAL150-315 310-442 68-125 90-250 132-355 150-220 17-32.5 15-30 18.5-45
ZAL150-400 400-520 113-502 200-400 280-500 200-260 28-51 30-55 37-75
ZAL150-500 208-300 45-77 45-110 75-132
ZAL150-630 220-360 60-115 75-200 110-250
ZAL200-250 470-610 32-72 75-160 90-220 240-305 8-17.5 11-22 15-30
ZAL200-315 480-710 65-122 132-355 185-450 350-350 15-30 18.5-45 22-55
ZAL200-500 330-495 48-84 75-185 90-220
ZAL200-560 350-540 62-105 110-250 132-355
ZAL200-630 372-580 75-132 132-315 185-450
ZAL250-315 424-545 13-27 30-55 37-75
ZAL250-400 500-660 24-49 53-132 75-160
ZAL250-500 630-800 42-82 110-280 160-400
ZAL250-560 665-860 57-106 160-400 250-560
ZAL300-400 780-1050 26-48 90-200 132-280
ZAL300-500 870-1240 42-78 160-450 250-560
ZAL300-560 950-1340 56-104 280-560 400-800
ZAL300-630 950-1450 75-132 355-1000 500-1400
ZAL300-500 1300-1870 38-74 220-630 315-1000
ZAL300-560 1500-2040 54-98 355-900

500-1250

Installation Dimension

Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump

Material Choose

We offer different kinds of anti-abrasive and anti-corrosive high-grade alloy materials to customers, like 304, 316, 316L, 904L, FCr30, CD4MCu, DTCr30, F33, 2507, A33, hastelloy, K alloy, 20# alloy and Lewmet85＃ alloy

Performance Curve

Industrial High Temperature Submersible Pump /Quality Vertical Long Shaft Immersion Pump

Application

Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc.
