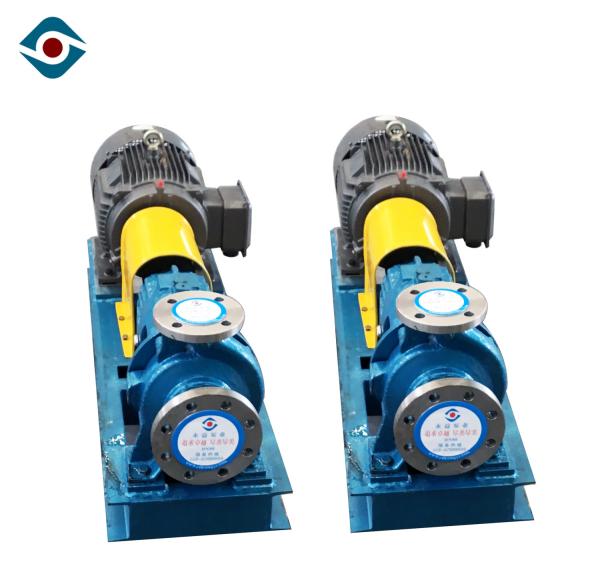

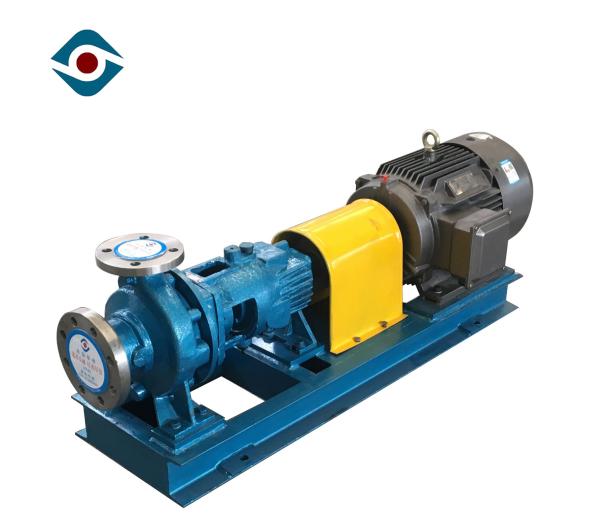

Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Design :
Standardized Chemical Pump
Q max :
2040 m3 / h
H max :
300m
Color :
Customized
Warranty :
1 Year
Voltage :
220V/380V/400V/415V/460V
Speed :
Up to 2800 RPM
Description

Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction

Application

In refineries, petrochemical industry, coal processing and low temperature engineering.

In chemical industry, fibre and general processing industries, particularly in paper and pulp industries, sugar industry.

In water industry, particularly seawater desalination plants.

In heating and air-condition ing.

In fossile and nuclear power- stations.

Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction

Product Overview

1. ZA-series chemical process pump is single-stage horizontal radial split volute pump.

2. The pump body is supported by foot

3. The impeller is single-suction radial impeller.

4. Liquid is sucked axially and discharged radially.

5. Packing box is equipped with cooler adapter or heater adapter.

6. Packing seal, single mechanical seal and double mechanical sealare adopted for shaft seal

7. The pump is equipped with cooling, washing and sealing fluid system.

Structure Drawings


Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction

102.00 pump body 161.00 pump cover 183.00 Support foot
210.00 shaft 230.00 impeller 320.00 Antifriction bearing
320.01 Antifriction bearing 330.00 Bearing bracket 360.00 Bearing cover
360.01 Bearing cover 400.00 Flat gasket 400.01 Flat gasket
412.00 O ring 412.01 O ring 433.00 Mechanical seal
433.01 Mechanical seal 471.00 Sealing cover 471.01 Sealing cover
502.00 Casing wear ring 502.01 Casing wear ring 502.02 Casing wear ring
503.00 Impeller wear ring 503.01 Impeller wear ring 507.00 deflrctor
507.01 deflector 524.00 sleeve 524.01 sleeve
638.00 Constant-level-oiler 644.00 Lubricating ring 673.00 Vent filter
710.00 pipe 915.00 Threaded insert 922.00 Impeller nut
923.00 Bearing nut 932.00 circlip

Design Feature

Standard: EN 22858 (ISO 2858), ISO 5199
Design: horizontal, single-stage
Construction: back-pull-out design
Casing design: single volute casing
Impeller: closed
Bearing lubrication: grease or oil lubrication
Installation versions: base plate, base frame or stilt mounting

Payment and Package

Shipping way includes sea shipping, air shipping and express shipping(DHL, TNT, Fedex, ...)

Payment terms is L/C, TT, PAYPAL, WEST UNION, or others negotiated with clients.

Standardized Centrifugal Pulp & Paper Horizontal Chemical Pumps Efficiency Single Suction
