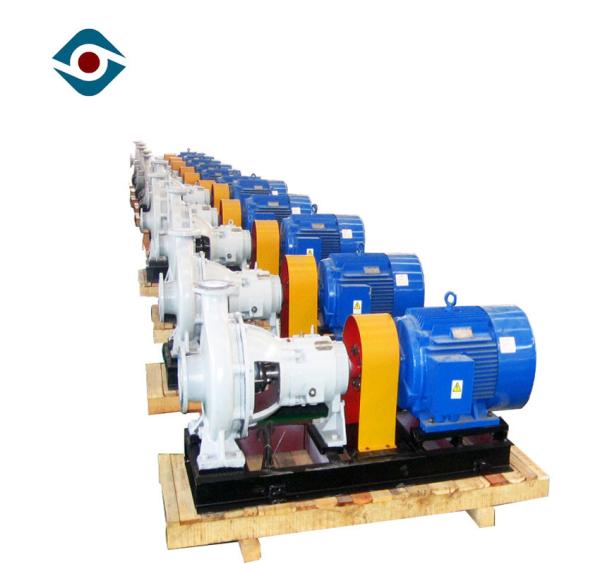

4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design
4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design
4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design
4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Theory :
Centrifugal Pump
Max Output :
2040m3/h, 34000LPM
Max Discharge :
300m
Warranty :
1 Year
Pressure :
25bar
Rotary Speed :
1450rpm, 2900rpm
Description

4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design

Brief Introduction

The ZA-series chrmical process pumps are suitable to transfer numerous chemical products such as liquid acids, suspensions, solvents, creams and pastes (including abrasive pastes), flammable liquids and highly viscous products.

Our production range includes electric chemical pumps products with mechanical seal, with magnetic drive or vertical centrifugal pumps designed to be installed in tanks to transfer chemical products, slurry pumps used in coal industry and mine to tranfer slurry contaion solid content.

Specification Data


Discharge Size: 32mm~200mm
Inlet Size: 50mm~250mm
Capacity: 4～2600m³/h
Head: 2～300m
Maximal Efficiency: 70%
NPSH: 1.4m~3.5m
Allowable Max Motor Power: 160kw
Seal Type: mechanical seal

Design Features

-Wet Parts: made of PTFE and FEP, structure compact, easily for operation, price competitive.

-Pump Casings, Impellers, Mechanical Seal Parts: interchangeable

-Oil – lubricated bearing: oil level is automatically adjusted by the constant oil cup

-Double Volute Design: smaller radial force

Working Medium and Application

Alkali industry mother liquor of ammoniacal brine for production of calcined soda,ammonia and soda,caustic alkali for production of chloralkali,chlorine products,chlorate,hypochlorite etc.
Nonferrous metallurgy conveying electrolyte of electrolyzed copper and nickel,acid mist/liquor for cobalt production,ore pulp for zinc production,ammonium vanadate for vanadium production and acid thiourea liquid forgold production.
Steel industry plating,acid washing,waste acid treatment
Acid industry nitric acid,sulphuric acid,hydrochloric acid,phosphoric acid,acetic acid etc.
Petrochemical petroleum refined aldehydes,alky| benzene production.
Synthetic fiber and plastic industry production,weaving and dyeing of polyester fiber and PVC.
Paper making conveying boiling liquid of pulp and bleaching liquid.
Chemical fertilizer industry production of urea and ammonium nitrate.
Pharmaceutical production of medicine and pesticide.

4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design

Our Service

4～2600m³/h Self Priming Chemical Centrifugal Transfer Pump Horizontal Back Pull Out Design

*All of the enquiry will be replied within 8 working hours

*Professional pump producer, with design team.

*All of the goods are packed with standard export wooden case(non-fumigation)

*Fast delivery time: common stock model, customed type:7 working days

*Support OEM or ODM

*Fast after-service
