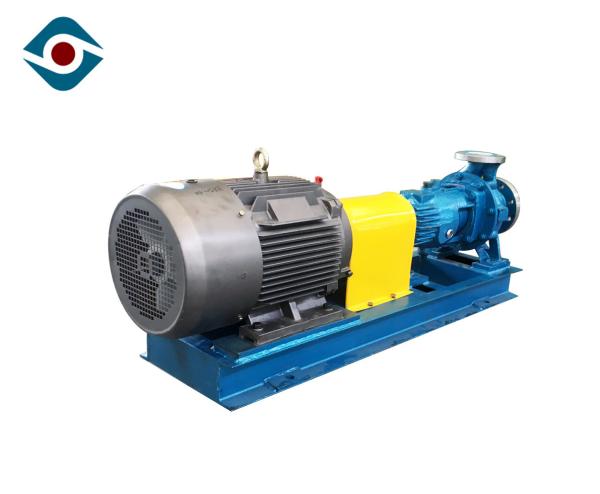

Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Theory :
Centrifugal Pump
Max Output :
34000LPM
Max Head :
300m
Warranty :
1 Year
Power :
Electric
Electrical :
3Ph 220/380V 50Hz
Description

Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump​

Overview

Because the chemical industry places high demands on pumps, requires uninterrupted production, and guarantees of safety and environmental regulations, it is very important to choose a pump that is right for chemical application. Our company always focusing on workplace safety and environmental regulations, is devoted to meeting all the customers' requirements.

.

Whether you are delivering the most dangerous chemicals in the industry, we can provide you with pumps that meet your requirements. We supply various pumps, including centrifugal pump and reciprocating pumps for many different chemical processes with long-term reliability. In addition, we offer a wide range of corrosion-resistant materials (metal and non-metal) to handle fluids most safely during chemical processing.

Performance Range

​

Discharge Size: 32mm~200mm

Inlet Size: 50mm~250mm

Capacity: 4～2600m³/h

Head: 2～300m

Maximal Efficiency: 70%

NPSH: 1.4m~3.5m

Allowable Max Motor Power: 160kw

Seal Type: mechanical seal

Application

1. Ionic membrane caustic soda production

2. Acid pickling process

3. Painting process

4. Electroplating industry

5. Pesticide industry
6. Papermaking

Structure Drawings


Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump

102.00 pump body 161.00 pump cover 183.00 support foot
210.00 shaft 230.00 impeller 320.00 antifriction bearing
320.01 antifriction bearing 330.00 bearing bracket 360.00 bearing cover
360.01 bearing cover 400.00 flat gasket 400.01 flat gasket
412.00 O ring 412.01 O ring 433.00 mechanical seal
433.01 mechanical seal 471.00 sealing cover 471.01 sealing cover
502.00 casing wear ring 502.01 casing wear ring 502.02 casing wear ring
503.00 impeller wear ring 503.01 impeller wear ring 507.00 deflrctor
507.01 deflector 524.00 sleeve 524.01 sleeve
638.00 constant-level-oiler 644.00 lubricating ring 673.00 vent filter
710.00 pipe 915.00 threaded insert 922.00 Impeller nut
923.00 bearing nut 932.00 circlip

​Details

​Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump

Payment and Package

Shipping way includes sea shipping, air shipping and express shipping(DHL, TNT, Fedex, ...)

Payment terms is L/C, TT, PAYPAL, WEST UNION, or others negotiated with clients.

Big Flow Leak-proof Horizontal Chemical Centrifugal Pump, Circulation Sea Water Pump
