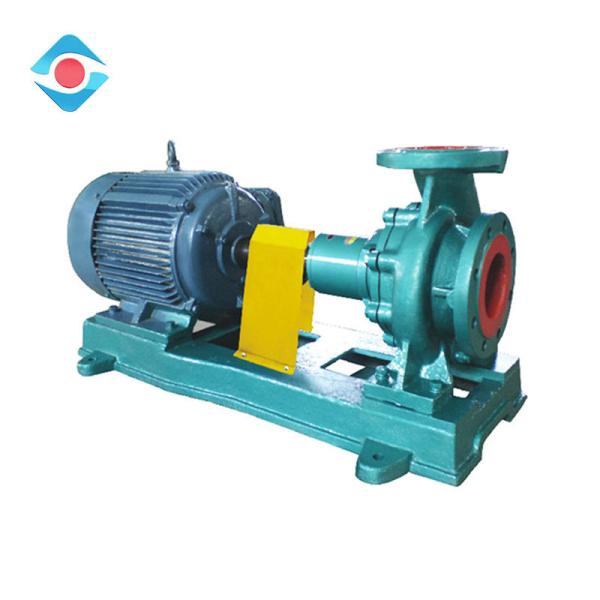

PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump
PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump
PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump
PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Certification :
ISO9001
Max Flow :
2040m3/h
Max Head :
300m
Voltage :
380V/440V, 50Hz/60Hz
Standard or nonstandard :
OEM/Standard
KW :
Chemical Standard Pump
Type :
Radial split volute pump
Description

PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump

Usage
1, petroleum and chemical industry;
2, the oil industry;
3, synthetic fiber industry;
4, textile printing and dyeing industry;
5, plastic and rubber industry;
6, papermaking industry;
7, wood industry;
8, building industry;

PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump

Parameter Data

  • DN: 25-400mm
  • Flow Q: 2600m3/h
  • Head H: 250m
  • Work Pressure P: 2.5MPa
  • Work Temperature T: -80℃-+450℃


​Structure

PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump

102.00pump body161.00pump cover183.00Support foot
210.00shaft230.00impeller320.00Antifriction bearing
320.01antifriction bearing330.00bearing bracket360.00Bearing cover
360.01bearing cover400.00flat gasket400.01Flat gasket
412.00O ring412.01O ring433.00Mechanical seal
433.01mechanical seal471.00sealing cover471.01Sealing cover
502.00casing wear ring502.01casing wear ring502.02casing wear ring
503.00impeller wear ring503.01impeller wear ring507.00deflrctor
507.01deflector524.00sleeve524.01sleeve
638.00constant-level-oiler644.00lubricating ring673.00vent filter
710.00pipe915.00threaded insert922.00impeller nut
923.00bearing nut932.00circlip


Feature of Chemical Pump

1) Single-stage, horizontal radial split volute pump with foot support of high versatility
2) Disassembled only by disassembling the extension of the coupling, without removing the pipes and the motor.
3) Standard closed impeller and open impeller.
Closed impeller: strong adaptability to working conditions, high efficiency and low cavitation.
Open impeller: suitable for conveying vapor-liquid and solid-liquid two-phase media.
4) Larger flange diameter ensures a lower flow rate.
5) Low noise.

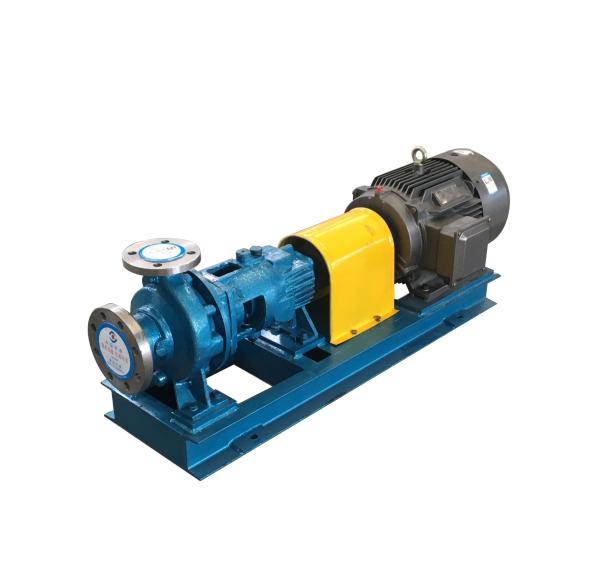

Product Picture
PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump

Packing

Free Fumigation Export Wooden Box

PTFE Strong Sulfuric Acid Transfer Pump Acid Resistant Stainless Steel Material Transfer Pump
