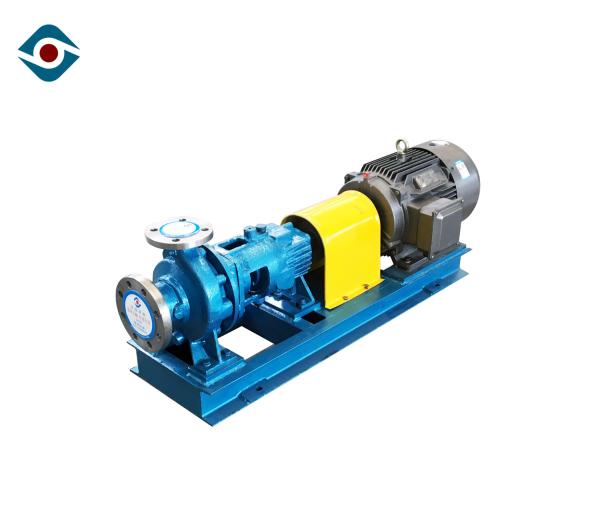

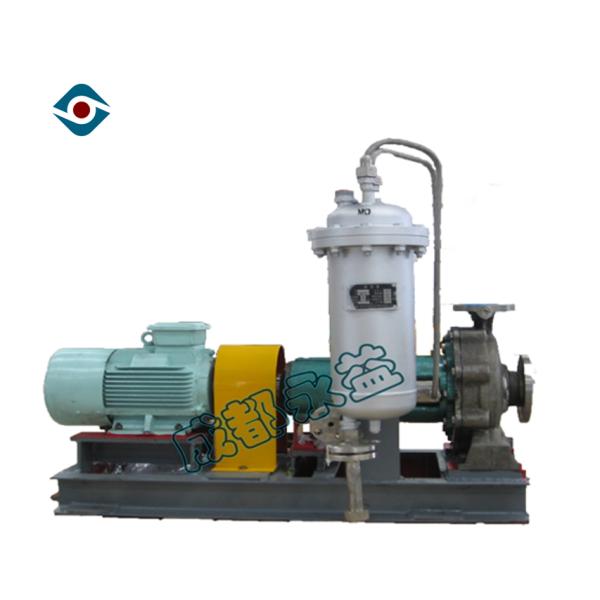

Horizontal Anti-Corrosion Acid Suction Centrifugal Chemical Pump with Explosion-proof Motor

Main Features

1) simple pump structure, simple installation and convenient maintenance.
2) 100% copper coil is adopted for the motor to ensure the service life.
3) wide range of application, which can be widely used in living, industrial, agricultural and other fields.
4) the explosion-proof motor can be customized to protect your safety.

Specification

	Model: ZA-series chemical process pump
	Discharge Size: 32mm~200mm
	Inlet Size: 50mm~250mm
	Capacity: 4～2600m³/h
	Head: 2～300m
	Maximal Efficiency: 70%
	NPSH: 1.4m~3.5m
	Allowable Max Motor Power: 160kw
Impeller	Allowed Max Particle Size: /
Vanes: 4~6	Seal Type: mechanical seal
Type: closed impeller	Pump Weight:up to 1500kg
Material:Metal (according to working conditions )	RPM: 1450 r/min or 2900 r/min

More Details

• Volute Casing: Heavy duty casing with integral foot and multi - ribbed discharge flange provided superior resistance to pipe loads and improves reliability back pull-out design allows for removal of the rotating element without disturbing the casing pipe work of motor to simplify routine maintenance
• Impeller: Closed or semi open impeller designed for low NPSH requirement, duplex stainless cast closer or semi open impeller for high efficiency performance, low running cost and long life, impeller vanes and shroud design provides axial balance which reduces maintenance and downtime cost by extruding seal and bearing reliability, reliable fixing of impeller on the shaft by impeller nut
• Shaft Seal: gland packing compatible to the pumped liquid or with mechanical seal in the stuffing box having suitable connection stamping for sealing slashing circulation one cooling etc. mechanical seal for various makes, unbalanced as well as balanced ones can be easily fitted in the standard stuffing box

Production Process

Below is the process of how to make a Competitive Price chemical pumps horizontal centrifugal chemical process pumps, it will help you know the produce process clearly.

FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
