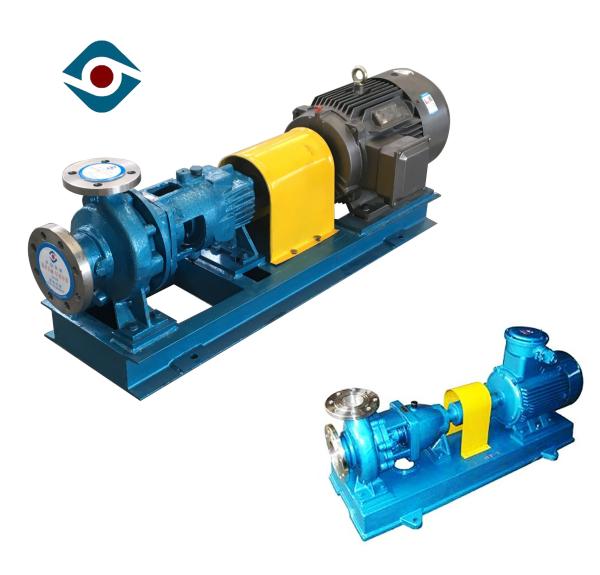

Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal
Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal
Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal
Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZA
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Flow :
4-2040m3/h
Head :
2-300m
Impeller :
Closed
Warranty :
1 Year
Material :
Metal
Feature :
Less noise
Description

Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal

Pump Structure

Pump seal a variety of structural forms, the most commonly used is built-in unbalanced single-ended mechanical seal. According to the working conditions, can also use the external, unbalanced or double-sided mechanical seal. Flushing cooling method can be flushing or flushing, you can also install additional sealing device. On the suspended particles or less corrosive media, can also choose to use soft packing seal (flushing or flushing).

Structure Diagram
Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal

102.00

pump body

161.00

pump cover

183.00

Support foot

210.00

shaft

230.00

impeller

320.00

Antifriction bearing

320.01

Antifriction bearing

330.00

Bearing bracket

360.00

Bearing cover

360.01

Bearing cover

400.00

Flat gasket

400.01

Flat gasket

412.00

O ring

412.01

O ring

433.00

Mechanical seal

433.01

Mechanical seal

471.00

Sealing cover

471.01

Sealing cover

502.00

Casing wear ring

502.01

Casing wear ring

502.02

Casing wear ring

503.00

Impeller wear ring

503.01

Impeller wear ring

507.00

deflrctor

507.01

deflector

524.00

sleeve

524.01

sleeve

638.00

Constant-level-oiler

644.00

Lubricating ring

673.00

Vent filter

710.00

pipe

915.00

Threaded insert

922.00

Impeller nut

923.00

Bearing nut

932.00

circlip


Performance Curve

Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal

Why Choose Us

Low NPSH Horizontal Chemical Pumps Lubrication Oil Pump Body with Single Mechanical Seal

  1. Core Value: Maximize the value of products
  2. Quality Awareness: We persevere in high quality and keeping improving
  3. Yongyi’s Vision: Try our best to contribute to pump industry and the world
  4. Service Concept: We do not only provide products of high quality, but also high quality service​
