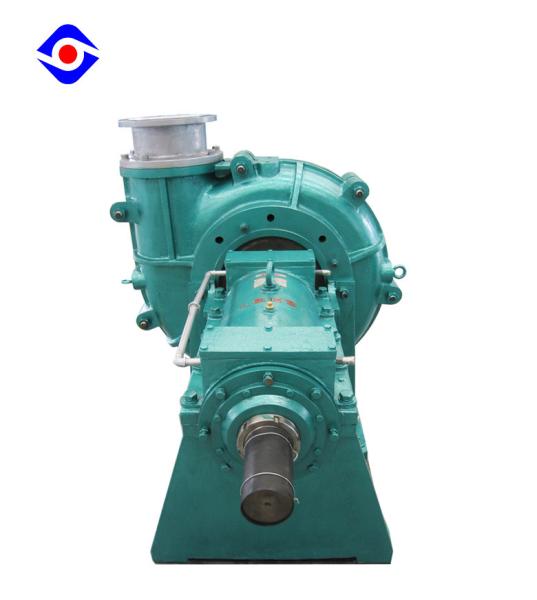

Customized Heavy Duty Horizontal Split Case Slurry Pump for Mining Sand Gravel Dredging

Parameter Range

Working Principle

The main working parts of the slurry pump are the impeller and the pump casing, the impeller is located in the pump shaft, and the prime mover connected into a whole.The impeller blades force the fluid to rotate.At the same time, the flow of fluid from the center to the edge of the impeller under the action of inertial force flows out of the impeller at high speed, into the pressure chamber, and then through the diffuser to discharge it, this process is called the pressurized water process.At the fluid flow edge of the impeller, a low pressure area is formed in the center of the impeller. When it has enough vacuum, the fluid enters the impeller through the suction chamber under the suction side pressure (usually atmospheric pressure), which is called the absorption process.As the impeller rotates continuously, the fluid is discharged and continuously inhaled to form continuous work.

Technical Parameter

Structure

Feature

• Improved NPSHR, “net positive suction head required”
• Lower power consumption (less drag)
• Passes large particles
• Variety of typical sizes
• High wear-resistant materials
• Effective hydraulic performance
• Uniform wear for longer service life
• Pre-tested bearing assembly and extra heavy duty pedestal to assure reliable field operation
• Unique impeller release collar to provide the safe removal of the worn impeller

Application

1) used in the concentrating plant to transport concentrate slurry and tailings
2) used to transport medium in coal mining plant
3) used to transport slurry which is easy to crystallize at high temperature in aluminum plant
4) used to transport slurry in cement plant

Installation Dimension

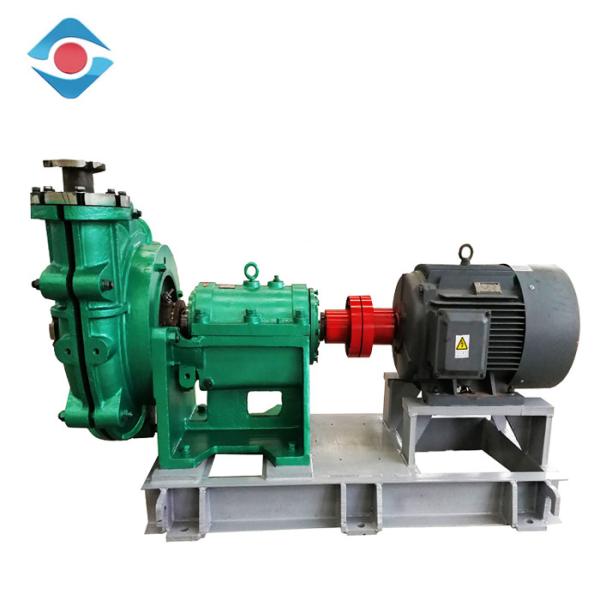

Single base

Sharing Base
