New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump
New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump
New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump
New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJ
Place of Origin :
SIchuan, China
MOQ :
1 set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Theory :
Centrifugal Pump
Max Flow :
3000 m³/h
Max Head :
130 m
Min Head :
10m
Structure :
Single Stage
Power :
Electric
Voltage :
380V or higher
Product name :
High Water Efficiency Wear-Resistant Horizontal Split Case Pump Slurry Pumps
Description

High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump


What is Slurry Pump

A Slurry pump is a special type of pump able to handle slurry. Unlike water pumps, are slurry pumps are subject to wear and are more robust and heavy duty.

Technical Parameter

Flow (m3/h) 4-3000
Head (m) 10-130
Rotate speed (r/min) 490-2900
Shaft power (kw) 60-315
Efficiency (%) 12-85
Power (kw) 0.55-800
Voltage (v) 380-6000

Product Description

ZJ-series is single stage single-suction cantilever centrifugal slurry pump. ZJ-series pumps are in accordance with the theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced; High-alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage componentsto improve service life.

The types of transmission include direct connection, belt, hydraulic fluid power and frequency conversion. According todifferent connections like seriesconnection andparallel connection, transmission type can be changed.

Feature


1) Weight reduce to 70%;
2) Good comprehensive performance
3) High flow rate capacity
4) Good passing ability
5) Optional diameter size

6) Widely application
7) High corrosion, abrasion resistance


New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump

Structure

New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump

Installation Dimension

Single base

New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump


Sharing Base

New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump

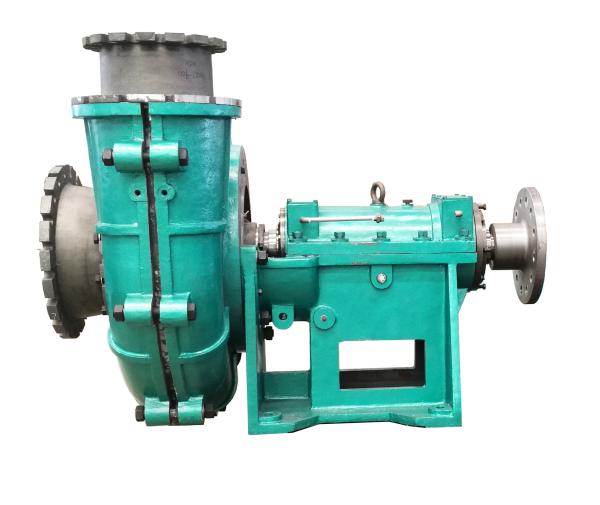

Product Picture

New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump

Application

Dewatering Mill discharge Heavy duty abrasive slurries
Cyclone feed Tailings and mine refuse Medium duty abrasive slurries
Regrind Mining and mineral processing In-plant slurry transfer pumps
Flotation

New High Efficiency Electric Slurry Pump , Wear Resistant Horizontal Split Case Pump
