Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types
Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types
Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types
Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJ
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Max Capacity :
3000 m³/h, 11000UK GPM
Max Head :
130 m
Flange :
Customized
Impeller :
Closed/ half open
OEM :
Welcome
Speed :
1450rpm to 2900rpm
Theory :
Slurry Pump
Usage :
Sludge slurry pump
Description

Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types

Product Feature

1. This pump is horizontal cantilevered single-casing centrifugal slurry pump.

2. Construction of this pump is single casing connected by means of clamp bands and the discharge direction of pump can be oriented in any direction of 360. the type of pump possesses the advantages of easy installation.

3. The cylinder –type bearing assembly with oil lubrication is adopted by the pump. It is suit for adjusting the distance between impeller and pump. The bearing assembly uses oil lubrication.

4. Three kinds of shaft seal---mechanical seal, expeller seal and packing seal

5. Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, and high efficiency,

6. The type of driver just have v belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.

Technical Parameter

Head 10 ~ 130 m
Capacity 4 ~ 3000 m³/h
Discharge Size 20mm~350mm
Inlet Size 32mm~400mm
Maximal Efficiency 70%
NPSH 0m~3m
Allowable Max Motor Power 315 kw
Diameter 200mm~470mm

Application of Slurry Pump

Slurry pump is one of the most widely used industrial pumps for conveying slurry and high-concentration slurry. Many industries, such as mining, power, steel, chemical, ceramics, etc., use slurry pumps to handle dense, high-density mud, solid-filled mud, or abrasive fluids. Slurry pump is the ideal pump, it can easily move ore such as coal, iron and other various types of mining waste.

The slurry pump has high reliability, durability and low power consumption. The pump is capable enough to handle difficult and difficult tasks.

Structure

Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types

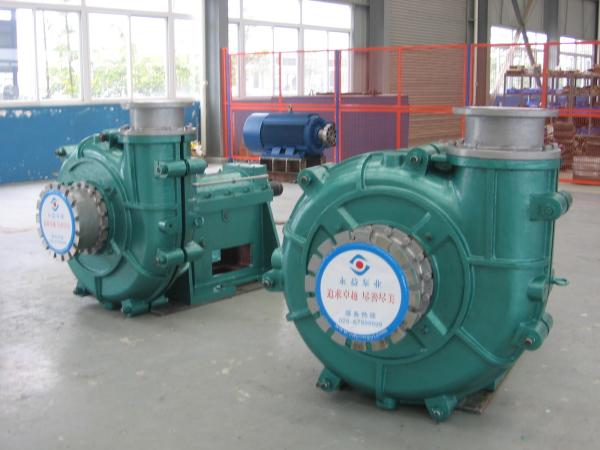

Product Picture

Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types

Installation Dimension

Single base

Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types


Sharing Base

Electric Cantilever Centrifugal Slurry Pump Single Suction High Wear Resistance Sludge Pump Types
