3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity
3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity
3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity
3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
YYTL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Theory :
Mix Flow Pump
Max Flow :
6500m3/h
Max Head :
25m
Type :
Blade Pump
Flange :
Customized
Shaft Sealing :
Mechanical Seal and Packing
Voltage :
380V/440V
Product type :
Desulphurization Pump
Description

3 Phase China Hot Sale New Designed Horizontal Mixed Flow Pump Desulphurization Pump​

Technical Parameter

Model

flow

(m³/h)

Head

(m)

Speed

(r/min)

Maximum efficiency

(%)

NPSH(NPSHr)

m

 Allowable maximum motor power(KW)

Net weight

(kg)
350YYTL-24 1280 25.2 740 75 6.5 200 3200
1600 24 80
1920 22.3 81
350YYTL-10 640 11.2 490 72 3.4 55 3200
960 10.2 78
1060 9.1 79
400YYTL-24 1760 25.5 740 80 6.8 280 3500
2200 24 82
2640 22 83
400YYTL-10 1160 11.3 490 78 3.2 75 3500
1450 10.5 80
1740 9.4 81
500YYTL-24 2800 25.8 590 82 7.1 450 4500
3500 25 85
4200 21.6 86
500YYTL-16 2320 18.2 490 82 3.8 75 4500
2900 16.5 85
3480 14.8 86
600YYTL-24 4500 25.5 590 83 8.0 710 6000
5500 24 87
6500 22 88
600YYTL-16 3737 17.6 490 83 5.5 400 6000
4568 16.6 87
5400 15 88
700YYTL-24 6400 25.5 490 84 8.0 1000 8000
8000 24 88.5
9600 21.5 89.5
700YYTL-18 5550 19.2 425 84 6.1 630 8000
6940 18 88.5
8327 16.2 89.5
800YYTL-24 8250 27 490 87.5 9.6 1250 8800
10500 24 89.5
12000 21.3 87.5
800YYTL-18 7156 20.3 425 87.5 7.2 800 8800
9100 18.1 89.5
10400 16 87.5
900YYTL-24 12000 26 370 86 8.3 1800 11400
15000 24 90
18000 21.5 90.2
900YYTL-19 10700 20.7 330 86 6.6 1250 11400
13380 19.1 90
16050 17.1 90.2

Product Description

According to Desulfurization Project Technical Specification of Thermal Power Plant, based on features of flue gas desulphurization system and advantages of like products, we manufactured the energy-saving product---- YYTL-series desulphurization pumps. YYTL-series pumps are large flow low head circulating pump. They are mainly used in wet FGD system, transferring limestone slurry and gypsum slurry. The pumps have advantages of high efficiency, safe and stable operation, convenient maintenance, long service life and so on.

Structure

3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity

1 Round nut 2 Rear bearing cover 3 Adjustment screw 4 Rear bearing 5 Ventilation plug
6 Front bearing 7 Front bearing cover 8 Water retaining plate 9 bolt 10 O ring
11 Pump cover 12 Mechanical seal 13 Pump body 14 impeller 15 Impeller nut
16 bolt 17 O ring 18 Lock screw 19 Front cover 20 O ring
21 O ring 22 key 23 O ring 24 Bearing body 25 Cooling water gland
26 Oil pointer 27 shaft 28 Cooling water pipe 29 Nearing box 30 Support blade
31 O ring 32 Framework oil seal 33 spacer sleeve 34 key

Medium Information

  • PH:4.5~8
  • Fibrous Material: <150mg/l
  • Particle Size: <100µm
  • Concentration: <60000ppm

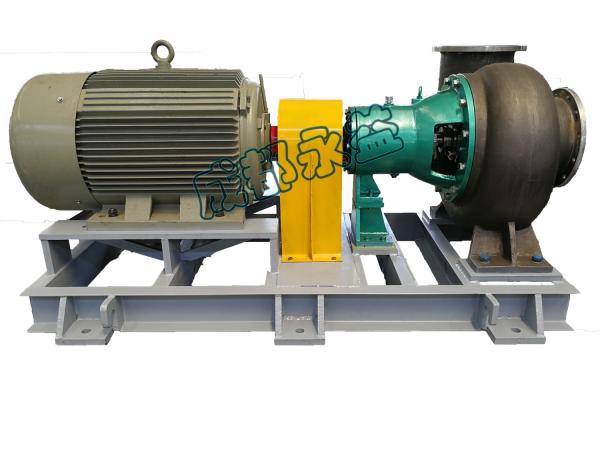

Product Picture

3 Phase Horizontal Mixed Flow Pump / Desulphurization Pump 200-6500 m³/h Capacity


Our Service

  1. Any inquires will be replied within 8 working hours.
  2. Professional centrifugal pump manufacturer, welcome to visit our website (on-line store) and factory.
  3. Customized design is available, OEM and ODM are welcomed.
  4. High quality, reasonable & competitive price.
  5. Fast lead time, 25-40days for bulk pump production.
  6. Payment: we usual accept payment by T/T, L/C and western union.
  7. We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
  8. After-sale service: all pumps will have been strictly quality checked in house before packing.
  9. All pumps will be well packed as request before shipping.
