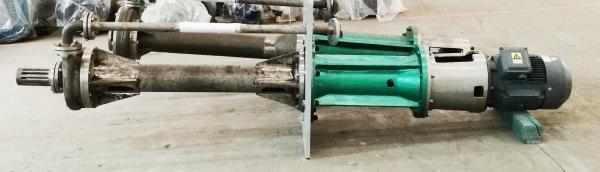

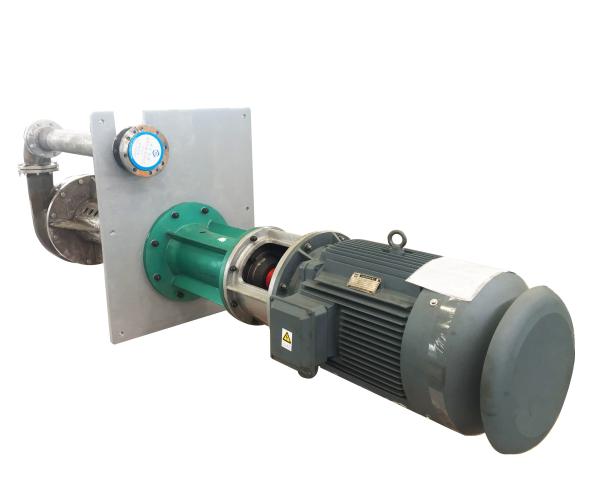

Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant
Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant
Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant
Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
WDL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Certification :
ISO9001
Max Flow :
450m3/h
Max Head :
120m
Speed :
1450rpm-2900rpm
Warranty :
1 Year
Structure :
Single-stage Pump
Type :
Blade Pump
Impeller :
Closed
KW :
Vertical Centrifugal Pump
Description

China Strong Acid and Alkali Resistant Vertical Centrifugal Pump Vertical Pump Motor

Product Description

WDL-series pump is anti-abrasive and anti-corrosive vertical submerged centrifugal pump, which is designed according to multiphase flow theory and practice experience. WDL-series single stage single-suction pump is applicable to convey easy crystal medium containing solid particles, featured by excellent performance, advanced structure, good anti-cavitation properties, strong bearing, stable operation, easy maintenance and long service life.

Parameter Data

Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant Model: WDL-series vertical centrifugal pump
Discharge Size: 40mm~200mm
Inlet Size: 50mm~250mm
Capacity: 8 ~ 800 m³/h
Head: 10 ~ 90 m
Maximal Efficiency: 70%
NPSH: 1.4m~4.5m
Allowable Max Motor Power: 315 kw
Impeller Allowed Max Particle Size: 20 mm
Vanes: 5/6 Seal Type: /
Type: closed/ half open Pump Weight:up to 3000 kg
Material:Metal (according to working conditions ) RPM: 1450 r/min

Structure

Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant

1 Impeller nut 8 Pump cover 15 base 22 framework oil seal 29 bearing box
2 strainer 9 shaft 16 flange 23 Upper shaft 30 O ring
3 Screw nut 10 Support pipe 17 flange 24 Motor base
4 key 11 Discharge pipe 18 Lower shaft 25 coupling
5 Pump body 12 spacer sleeve 19 oil retaining disk 26 key
6 impeller 13 framework oil seal 20 Shaft body 27 Upper shaft cover
7 elbow 14 Lower shaft cover 21 Bearing box cover 28 inner hexagon screw

Application


In the fields of chemical industry, metallurgy, power industry, paper making industry, food industry, pharmaceutical industry and synthetic fibre industry, WDL-series pumps are applicable to convey corrosive and abrasive liquid (solid content is no more than 40% ).


FAQ

Submerged Single Stage Vertical Centrifugal Pump Strong Acid And Alkali Resistant
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
