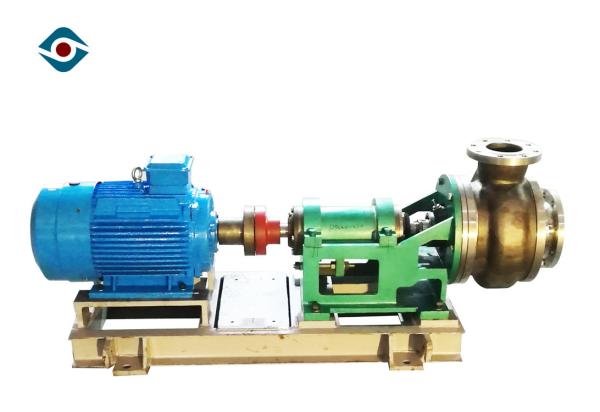

Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump
Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump
Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump
Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
XWD
Place of Origin :
Sichuan, China
MOQ :
1 Set
Price :
USD500-5000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Fumigation Free Quality Export Wooden Box
Certification :
ISO9001
Fumigation :
Vortex
Flow :
8~800m3 / h
Head :
10~50m
Speed :
1500rpm
Pump Protection :
IP44/IP54
Power :
250KW
Temperature :
-50℃-130℃
Description

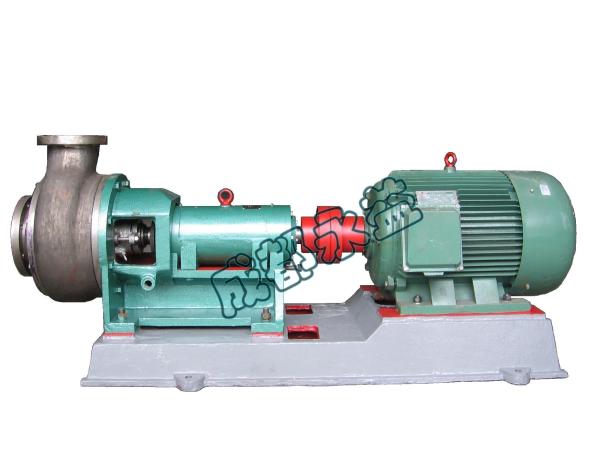

Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump

Features

♦ The center line of outlet is supported by a cantilever. The large-flow high-lift pump body adopts double volute with small radial force and dynamic winding small, the pump runs smoothly,

♦ Heavy-duty shaft design adopts cylindrical roller and a set of angular contact bearings, which can bear larger radial load and axial load, and strengthen the overall rigidity of the pump shaft. At the same time, the impeller does the check and correction of static balance. The pump runs with low vibration, low noise, which is very beneficial to the service life of shaft seals and bearings

♦ The axial force of XWD vortex pump is dry structure design. The impeller is fixed on the shaft by the impeller nut and sleeve. There is an O-ring between the impeller nut and the impeller, the impeller and the bushing. Under normal working condition, the pump shaft does not touch the medium and is not corroded by the medium, which improves the safety and reliability of the pump operation.

Large Flow 380V Vortex Impeller Pump , Peripheral Chemical Process Pump

Parameter Range

► Model:XWD-series vortex pump
► Pressure:1.6MPa
► Capacity: 8～750m³/h
► Head:15～60m
► Maximal Efficiency: 69%
► Pump Weight:up to 1500kg
► RPM:1450r/min
► Motor Power: 250KW
► Temperature: -50℃-130℃

Technical Parameter

Model

 Clean Water Performance

Flow

(m³/h)

Head

(m)

Rotating Speed

(r/min)

Efficiency

(%)

NPSHr

(m)
40XWD-250 8-20 15-27 1450 29 2.4
40XWD-315 10-30 25-40 1450 32 2.6
50XWD-250 30-50 15-28 1450 35 2.5
50XWD-315 30-50 25-40 1450 35 2.6
50XWD-400 30-50 38-60 1450 32 2.8
65XWD-250 50-80 15-25 1450 38 2.2
65XWD-315 50-80 25-40 1450 40 2.4
65XWD-400 50-80 38-60 1450 37 2.6
80XWD-250 80-120 15-25 1450 45 2.6
80XWD-315 80-120 22-38 1450 46 2.7
80XWD-400 80-120 35-55 1450 47 2.9
100XWD-250 120-180 10-20 1450 51 2.7
100XWD-315 120-180 18-35 1450 52 2.8
100XWD-400 120-180 35-50 1450 54 2.8
125XWD-250 180-250 10-20 1450 55 2.9
125XWD-315 180-250 18-35 1450 57 3.1
125XWD-400 180-250 35-50 1450 60 3.2
150XWD-315 250-350 20-35 1450 62 3.2
150XWD-400 250-350 32-50 1450 65 3.2
300XWD-315 350-650 20-30 1450 65 3.3
200XWD-400 650-650 28-45 1450 67 3.3
250XWD-400 450-750 28-45 1450 69 3.3


Pumping Medium

Chemical Industry

Nitric acid, sulfuric acid, hydrochloric acid and phosphoric acid etc

Pharmacy

Nutrition Liquid, Biological Products etc

Other Industry

Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.

Packing

Fumigation Free Quality Export Wooden Box
