High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid
High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid
High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid
High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
CZ
Certification :
ISO9001
Place of Origin :
Sichuan，China
MOQ :
1 Set
Price :
USD499-6000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Quality Export Wooden Box
Power :
Electric motor
Flow :
4~2000 m3/h
Head :
2~160 m
Speed :
1450rpm
Frequency :
50hz or 60hz
Usage :
Chemical liquid
Warranty :
12 months Warranty(except Wearing Parts)
Description

High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid

Brief Introduction

YCZ-series pumps have advanced hydraulic model, high efficiency and good anti-cavitation properties. With a high degree of standardization&wide universality and mounting dimension which is in accordance with standard IS03661, YCZ-series pumps are employed universally in global industry.

Product Features

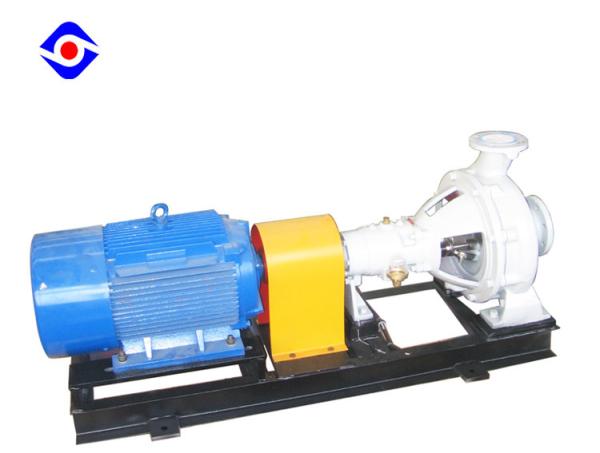

► Horizontal chemical process pump: Single stage, single suction horizontal cantilever centrifugal pump. The pump body is radial split volute pump and supported by anchor. The pump runs smoothly and realiable.


► Excellent corrosion resistance: Chemical pump delivered medium, including raw materials, reaction intermediated are always corrosive medium,, including acid, alkali and other mixed medium. The materials should be selected properly and reasonably, ensuring the pump security, stability, long life operation. A05V, A33, 304, 316L, CD4MCu, Cr30A, Cr30, DTCr30, 2507 etc. are the main material to produce chemical pump


► Seal type is selectable: Chemical pump conveyed medium most is inflammable, explosive, toxic and hazardous liquids, once leak will severe pollute environmental. There is no risk to leak because our pumps are adopt quality shaft seal.

Structure

High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid

Performance Parameter

Technical Parameter

 Data
Mode YCZ-series chemical process pump
Discharge Size 20mm ~250mm
Inlet Size 32mm~300mm
Capacity 4~2000m³/h
Head 2~160m
Maximal Efficiency 65%
NPSH 0m~3.5m
Allowable Max Motor Power 710 KW
Allowed Max Particle Size 20mm
Seal Type mechanical seal/dynamic seal/packing seal
RPM

1450r/min~2900r/min
Material of Liner Metal (according to working conditions )

Scope of Application

1, petroleum and chemical industry;

2, the oil industry;

3, synthetic fiber industry;

4, textile printing and dyeing industry;

5, plastic and rubber industry;

6, papermaking industry;

7, wood industry;

8, building industry;


High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid

Installation Dimension

High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid


FAQ

High Concentration Single Stage Industrial Process Pumps 1450rpm for Relative Density Liquid
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
