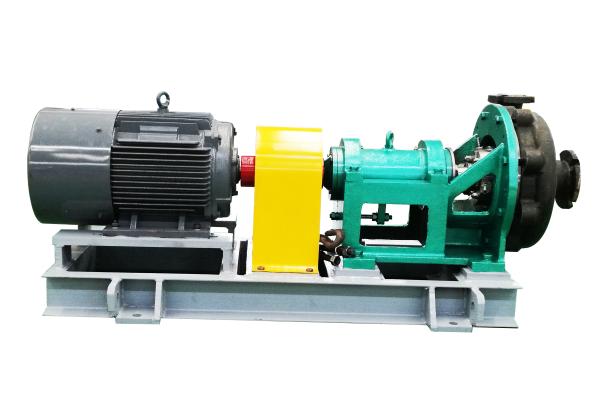

High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical
High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical
High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical
High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
CZ
Place of Origin :
Sichuan，China
MOQ :
1 Set
Price :
USD 499-6000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Quality Export Wooden Box
Certification :
ISO9001
Flow Rate :
2000 m3/h
Lift Head :
160 m
Type :
Blade Pump
Voltage :
More than 220V
Name :
Self Priming Pump
Seal Type :
Mechanical seal/ Packing seal
Working Pressure :
2.5Mpa
Description

High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical

Operation Data

  1. Discharge Size:20mm ~250mm
  2. Inlet Size:32mm~300mm
  3. Capacity:4~2000m³/h
  4. Head:2~160m
  5. Maximal Efficiency:65%
  6. NPSH:0m~3.5m
  7. Impeller Type: closed/half open
  8. RPM:1450r/min~2900rpm

Performance Table

Model Rated Speed n=2900r/min Rated Speedn=1450r/min
Impeller

Capacity Q

(m3/h)

Head

H(m)

 Relative Density ρ=1.00 Relative Density ρ=1.84 Impeller

Capacity

(m3/h)

 Head H(m) Relative Densityρ=1.00 Relative Densityρ=1.84
Motor Power and Model Motor Power and Model
Kw Kw Kw Kw
YCZ80/250 D 150 55 37 200L2-2 75 280S-2 E 70 11 5.5 132S-4 7.5 132M-4
X 140 50 30 200L1-2
E 130 47 55 250M-2
YCZ80/315 A 200 130 110 315S-2 185 315L-2 A 100 32 15 160L-4 30 200L-4
B 190 125 B 95 30
M 180 120 90 280M-2 160 315L1-2 C 85 24 11 160M-4 18.5 180M-4
N 170 110 75 280S-2 D 70 18 7.5 132M-4 15 160L-4
C 160 100 132 315M-2
X 150 90 110 315S-2
D 140 80 55 250M-2 90 280M-2
YCZ80/400 A 105 52 30 200L-4 55 250M-4
B 100 50 55 250M-4
C 90 44 45 225M-4
D 80 38 18.5 180M-4 37 225S-4
E 75 30 15 160L-4 30 200L-4
YCZ100/200 A 230 45 45 225M-2 75 280S-2 A 115 11 7.5 132M-4 11 160M-4
B 210 40 37 200L2-2 55 250M-2 B 100 10 5.5 132S-4
C 180 32 22 180M-2 45 225M-2 C 90 8 4 112M-4 7.5 132M-4
D 150 25 37 200L2-2 D 80 6 3 100L2-4 5.5 132S-4
YCZ100/250 A 280 75 90 280M-2 160 315L1-2 A 130 20 15 160L-4 22 180L-4
B 260 70 75 280S-2 132 315M-2 B 125 16 11 160M-4 18.5 180M-4
M 240 65 75 280S-2 110 315S-2 C 120 14 15 160L-4
C 220 60 55 250M-2 110 315S-2 D 100 10 7.5 132M-4 11 160M-4
N 200 52 45 225M-2 90 280M-2
D 175 45 37 200L2-2 75 280S-2
YCZ100/315 A 270 135 160 315L1-2 A 130 32 22 180L-4 37 225S-4
B 260 128 132 315M-2 B 120 30 18.5 180M-4 30 200L-4
M 250 120 C 100 26 15 160L-4
N 230 112 110 315S-2 185 315L-2 D 90 21 11 160M-4 18.5 180M-4
C 220 105
X 210 95 90 280M-2 160 315L1-2
D 190 85 75 280S-2 132 315M-2

Structure Feature

High Speed Corrosion Resistant Self Priming Centrifugal Pump for High Temperature Chemical

  • ISO5199 and GB/T5656 standards

  • based on an advanced hydraulic model, higher efficiency

  • high versatility and wide application range

  • pull-back design: reduce the maintenance and repair costs

  • interchangeable parts

  • GB/T9113.1-2000PN2.5MPa standard flange

Details

Pump Casing: volute case design, radial split with integrated feet, provide excellent resistance to pipeline loads and improved reliability. The pull-out design makes it possible to remove the rotating element without affecting the motor's bushing operation.

Impeller: Inpleller is inblock cast. There are two ways to balance the axial force of the pump: when the nominal diameter of the impeller is less than or equal to 250mm, the back blade is used to balance the force; when the nominal diameter of the impeller is larger than or equal to 315mm, the sealing ring and the balance hole are used to balance the force. The residual axial force is absorbed by a set of angular contact ball bearings.

Shaft Seal: The dimension of the shaft seal cavity meets the requirements of various shaft seal types. Packing seal, single end mechanical seal, pressure double seal, pressureless double seal, and cartridge mechanical seal can be used to meet customers’ need.

Application

In the fields of chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply , CZ-series pumpsare suitable to convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.

Product tags

stainless steel self priming pump

,

anti-corrosion centrifugal pump

,

corrosion resistant centrifugal pump
