Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature
Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature
Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature
Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
DCS
Certification :
ISO9001
Place of Origin :
Sichuan
MOQ :
1 Set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 Sets/Month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Export wooden box packaging
Max Flow :
400 m3/h
Max Head :
50m
Structure :
Single-stage
Key Word :
Non-metal Material Chemical Pump
Material :
Non-metal Material
Efficiency :
Up to 70%
Description

Non-metal Material High Strength 150℃ Horizontal Chemical Pump Application Temperature

Structure

Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature

Structure Feature

The shaft seal adopts mechnical seal.

The mechnical seal adopts fully enclosed structure.

No metal materials are used in flow-part.

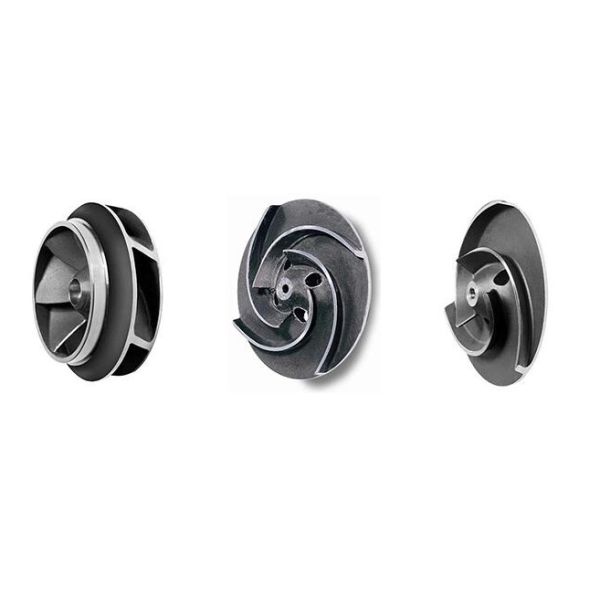

Impeller Structure

Close Impeller:It is suitable to transfer clean liquids, liquids containing thin solid particles, thin liquids.

Open Impeller: It is suitable to transfer clean liquids, liquids containing solid particles, abrasive liquids, slurries and paper stock up to 8% consistency.

Special Open Impeller:It is suitable to transfer liquids containing bigger solid particles and long fiber, abrasive liquids or stock up to 8% consistency.

Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature

Performance Data

Discharge Size:40mm~125mm
Inlet Size:50mm~150mm
Capacity:30～400m³/h
Head:15～50m
Maximal Efficiency:65%
NPSH: 1.4m~3.5m
Allowed Max Particle Size:20 mm
Seal Type: mechanical seal/dynamic seal/packing seal
RPM:1450r/min

Material Characteristics

Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature

  • Acid resistance: hydrofluoric acid, fluosilicic acid, hydrochloric acid phosphoric acid, nitric acid, dilute sulphuric acid, organic acid
  • Application temperature: application temperature ranges from o to 130C, and differs from mediums
  • Corrosion resistance: particle size ＜ 20 mesh, solid content ≤ 50%
  • Service life: its service life is three times as long as that of ordinary metal pump and non-mental pump

Package

1.Accessories parts are packed by high quality plywood crate, to reduce distortion in conveying;

2.Transport ways are based on reducing cost for you and keep the pump performance.

Non Metal Material High Strength Horizontal Chemical Pump 150℃ Application Temperature
