Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant
Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant
Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant
Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJ
Certification :
ISO9001
Place of Origin :
SIchuan, China
MOQ :
1 set
Price :
USD500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
free fumigation export wooden box packaging
Theory :
Centrifugal Pump
Max Flow :
3000 m³/h
Max Head :
130 m
Min Head :
10m
Structure :
Single Stage
Voltage :
380V or higher
Pressure :
High Pressure
Warranty :
One Year
Power :
Electric
Application :
pumping slurry
Description

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant

Detailed Characteristic

1. cantilever, horizontal centrifugal slurry pump
2. interchangeable wear-resistant metal lining, and the impeller is made of wear-resistant metal or rubber material.
3. shaft seal can be used packing seal or pay impeller pressure relief cover seal. The outlet position of the pump can be installed and used by rotating 8 different angles at 45° intervals as required.

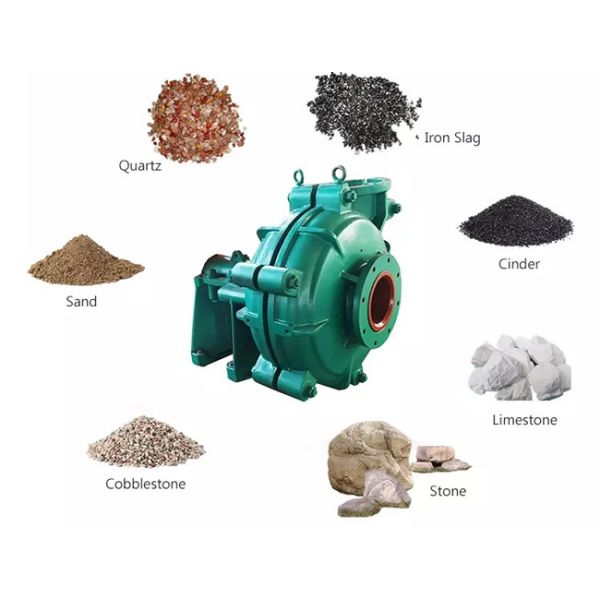

Usage

It can transfer slurry containing impurities such as sand, quartz, cinder, iron slag, stone, limestone, etc./ and the diameter of the particles can reach up to 135mm

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant

Technical Range

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant Model: ZJ-series horizontal slurry pump
Discharge Size: 20mm~350mm
Inlet Size: 32mm~400mm
Capacity: 4 ~ 3000 m³/h
Head: 10 ~ 130 m
Maximal Efficiency: 70%
NPSH: 0m~3m
Allowable Max Motor Power: 315 kw
Impeller Allowed Max Particle Size: 20 mm
Vanes: 5/6 Seal Type: step-down dynamic seal
Type: closed/ half open Pump Weight:up to 3000kg
Material:Metal (according to working conditions ) RPM: 1450 r/min

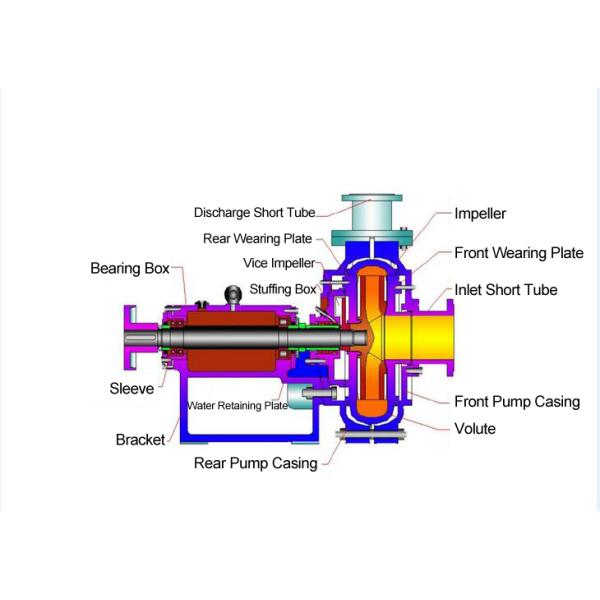

Structure

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant

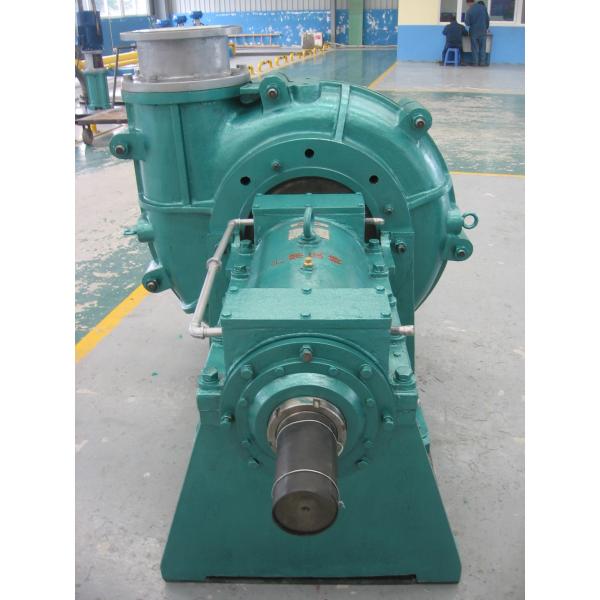

Product Picture

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant

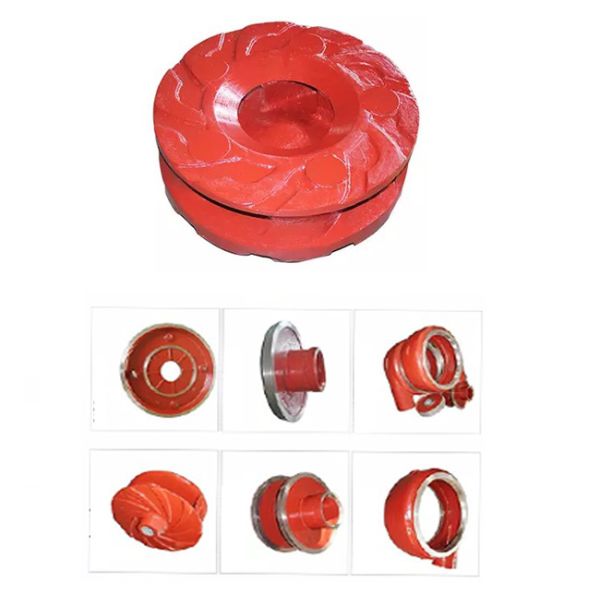

Details

The impeller, either elastomer, stainless steel or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid. We usually use high chromium, which is wear resistant, corrosion resistant, not afraid of most of solid parts.

Heavy Duty Horizontal Slurry Pump Electric Sludge Pump Abrasion Corrosion Resistant

Our Service

Pre-sale service

1.Consulting and consulting support.
2.Sample test support.
3. View our factory.


After sales service
1.Train how to install the machine and train how to use the machine.
2. Video demonstration, operation guide
3. Engineers can repair machinery overseas.
