Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump
Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump
Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump
Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
CZ
Certification :
ISO9001
Place of Origin :
Sichuan，China
MOQ :
1 Set
Price :
USD499-6000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 set/month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Quality Export Wooden Box
Theory :
Centrifugal
Max Flow :
2000 m3/h
Max Head :
160 m
Usage :
Chemical liquid
Fuel :
Electric
Particle Size :
Max 20mm
Description

Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump

Product Features

  • advanced hydraulic model

  • high efficiency

  • good anti-cavitation properties

  • high degree of standardization

  • wide universality

  • accordance with standard IS03661

Details

Driver: Electric motor
Power Specs: 220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: SS304, SS316, SS904, Hastelloy, Titanium alloy, etc
Shaft seal type: Mechanical seal, dynamic seal, packing seal
Maximum discharge-side pressure: 2.5MPa
Maximum head: 160m

Applications

In the fields of chemicals, petrochemical industry, metallurgy, synthetic fibre industry, pharmaceutical industry,paper making industry, air conditioning industry , sugar industry, heating industry, sea water desalination, and water supply , CZ-series pumpsare suitable to convey neutral liquid medium, corrosive liquid medium, clear liquid medium and liquid medium containing few solid particles.

Material to Choose

We provide various kinds of material for customers to choose. Our engineer will suggest you different material base on your different working consition. These material have onething in common is that they all abrasion resistance.

Pump Casing/ Back plate : SS304 / SS316/ALLOY-20 / HASTE ALLOY-C
Impeller : SS304 / SS316/ALLOY-20 / HASTE ALLOY-C
Shaft-Sleeve : SS304 / SS316/ALLOY-20 / HASTE ALLOY-C
Base plate : M.S
Shaft Sealing : MECHANICAL SEAL

Structure

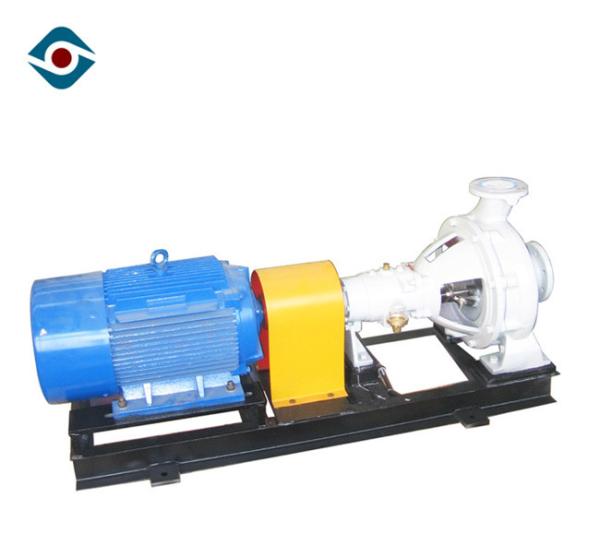

The CZ-series chemical process pump is horizontal single-stage pump. The pump body is radial split volute pump and supported by anchor. The suction is horizontal, the discharge is vertical and both are cast together with the pump body.

Standard Small Chemical Pump , Self Priming High Performance Pump Chemical Circulation Pump

FAQ

Q1. What is your product range? Centrifugal pump, slurry pump, sewage pump, chemical pump, single stage pump, industry pump, mud pump, self-priming pump, etc.
Q2. Are you a manufacturer? Yes, we have been in manufacturing and marketing industry centrifugal pump since 1993.
Q3. What information should I let you know if I want to get a quotation? Pump capacity, pump head, medium, medium temperature, pump material, quantity.
Q4. Do you inspect the finished product? Yes, each batch of production and finished product will be quality checked strictly before delivering. The packing will be standard export plywood carton.
