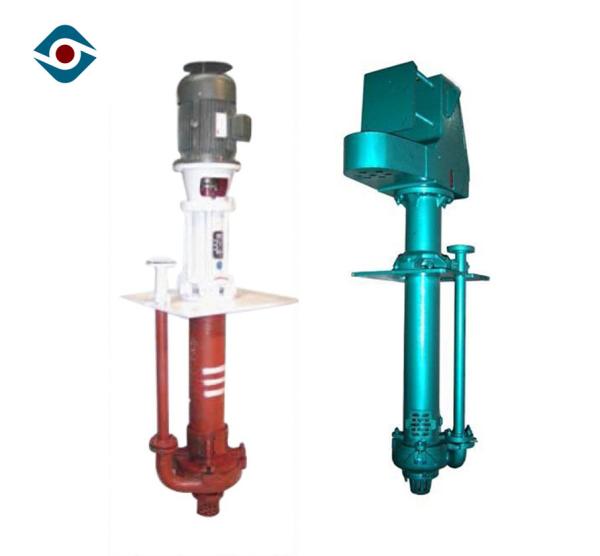

Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJL
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Theory :
Centrifugal Pump
Max Flow :
364m 3/ h
Max Head :
58m
Fuel :
Electric
Color :
Customized
Oem :
welcome
Speeed :
1450-2900rpm
Efficiency :
45%
Usage :
slurry
Type :
vertical slurry pump
Description

High Pressure Centrifugal Slurry Pump , Submerged Vertical Sewage Pump

Main Usage

ZAL-series centrifugal vertical slurry pumps submersible slurry pump is designed for transferring water, corrosive liquids, oil, sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, alkali, organic solvent .etc

Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump

Product Details

Advantage Picture
Motor Ensure the efficient, safe and stable operation of the motor Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Rotor

-Precision forging

-surface is treated by moisture and rust removal

-Smooth operation and high concentricity

 Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
Mechanical Seal

-Good sealing performance, durable wear resistance, corrosion resistance alloy

-Suitable for corrosive, high temperature and other complex conditions

 Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump

Technical Parameter

Model

 Clear Water Performance

Supporting motor

Rotating speed

n

Flow

Q

Head

H

Shaft power

Pa

effectiveness

η
r/min (m³/h) m kw %

150ZJL-A35

980

 198 17.9 15.3 63.1

Y250M-6 V1

380V 37kw
332 13.2 17.5 68.1
364 12.1 18.0 66.8

730

 147 10.0 6.3 63.1

Y200L-8 V1

380V 15kw
247 7.3 7.2 68.1
271 6.7 7.4 66.8

590

 119 6.5 3.3 63.1

Y160L-10 V1

380V 11kw
200 4.8 3.8 68.1
219 4.4 3.9 66.8

100ZJL-A36

1480

 113 51.1 32.1 54.1

Y250M-4 V1

380V 55kw
185 42.2 39.4 58.9
239 34.1 45 .1 54.2

970

 76 22.9 9.6 54.1

Y200L1-6 V1

380V 18.5kw
124 18.9 11.8 58.9
160 15.3 13.5 54.2

80ZJL-A33

1480

 100 46.8 26.8 52.6

Y225M-4 V1

380V 45kw
141 41.6 31.0 56.5
157 36.5 33.2 52.3

970

 42 16.8 5.5 52.6

Y180L-6 V1

380V 15kw
94 12.4 7.1 56.5
122 8.4 8.7 52.3

65ZJL-A38

1470

 75 52.3 23.1 42.7

Y225S-4 V1

380V 37kw
97 45.8 26.4 45.8
120 43.4 28.8 45.6

970

 50 23.4 6.9 42.7

Y180L-6 V1

380V 15kw
65 20.5 7.9 45.8
80 19.4 8.6 45.6

65ZJL-A30

1470

 38 34.7 8.2 43.7

Y180M-4 V1

380V 18.5kw
58 31.9 9.7 51.9
98 26.0 13.4 51.7

960

 25 14.8 2.3 43.7

Y132M2-6 V1

380V 5.5kw
38 13.6 2.7 51.9
64 11.1 3.7 51.7

50ZJL-A40

1470

 31 58.3 16.5 29.9

Y200L-4 V1

380V 30kw
47 51 19.1 34.1
65 37.9 22.1 30.3

970

 21 25.4 4.9 29.9

Y160L-6 V1

380V 11kw
31 22.2 5.5 34.1
43 16.5 6.4 30.3

50ZJL-A36

1470

 36 42.7 15.7 31.2

Y200L-4 V1

380V 30kw
63 37.8 18.7 39.4
85 29.3 20.7 33.5

970

 24 19.1 4.7 31.2

Y160L-6 V1

380V 11kw
42 16.9 5.6 39.4
57 13.1 6.2 33.5

50ZJL-A20

1440

 17.1 10.7 1.4 34.9

Y112M-4 V1

380V 4kw
24.7 9.2 1.6 38.6
38.0 6.0 2.0 31.2

910

 10.8 4.3 0.4 34.9

Y90L-6 V1

380V 1.1kw
15.6 3.7 0.4 38.6
24.0 2.4 0.5 31.2

40ZJL-A35

1470

 23.7 42.9 12.8 27.3

Y180L-4 V1

380V 22kw
42.3 34.3 13.7 33.8
47.6 30.5 14.1 28.1

970

 15.8 19.2 3.8 27.3

Y160M-6 V1

380V 7.5kw
28.3 15.3 4.1 33.8
31.8 13.6 4.2 28.1

40ZJL-A25

1440

 10.1 21.5 2.3 26.1

Y132S-4 V1

380V 5.5kw
18.4 19.0 2.6 36.6
22.9 16.8 2.8 37.6

910

 6.6 9.2 0.6 26.1

Y90L-6 V1

380V 1.1kw
12 8.1 0.7 36.6
14.9 7.2 0.7 37.6

40ZJL-A21

1440

 9.5 17.0 1.6 27.9

Y112M-4 V1

380V 4.0kw
20.3 15.3 2.0 42.4
25.9 14.1 2.2 44.6

910

 6.0 6.8 0.4 27.9

Y90L-6 V1

380V 1.1kw
12.8 6.1 0.5 42.4
16.4 5.6 0.6 44.6

Installation Dimension

Electric High Pressure Vertical Slurry Pump , Submerged Centrifugal Sewage Pump
