Specifications
Brand Name :
OEM
Model Number :
JDR
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000 pcs per month
Delivery Time :
15 days
Packaging Details :
Plastic bag/paper bag+wooden bag or custom made
Materials :
synthetic diamond
Appication :
hard concrete, pavers, brick, clay pavers, hard brick, refractory brick
Segment type :
U-slot
Color :
as customer's required
Machine :
Angle Grinder,Circular hand Saw
Bond system :
Metal bond
producing way :
sintered,hot pressed
Working condition :
Dry cutting
Description

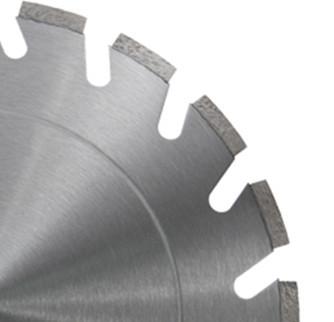

1. Wide U Slot Diamond cutting blade for hard concrete, pavers, brick, clay pavers, hard brick, refractory brick

2. These laser welded diamond blades also feature a U gullet design for effective slurry removal and a cooler running core during masonry applications.
Premium standard segmented blades are used with high speed power saws, masonry saws and walk behind saw for cutting asphalt, green concrete, block, concrete, hard concrete, pavers, brick, clay pavers, hard brick, refractory brick, field stones, marble, granite, and ductile iron pipe.

3, Advatange:

a. Processing technology: Laser welded.
b. Specially used for asphalt, asphalt overlay and other abrasives material cutting with high efficiency. Wet and dry cutting for construction, building, highway, road work, as well as driveways, parking lots, pavement.
c. Professional, premium, standard quality grade available.
d. Various protection segment prevent abrasive materials from wearing and tearing steel core.
e. Maximum cutting performance and long life via tough wear-resistant segments.
f. Suitable for walk-behind concrete saws or hand-held saws.

4. Specification:

Dimension Hole/Bore Segment
inch mm mm Height (mm) Thickness (mm) No.of Teeth
10" 250 25.4/50/60 10/12 2.6±0.2 17
12" 300 25.4/50/60 10/12 3.0±0.2 18/21
14" 350 25.4/50/60 10/12 3.4±0.2 21/24
16" 400 25.4/50/60 10/12 3.6±0.2 24/28
18" 450 25.4/50/60 10/12 4.0±0.2 26/32
20" 500 25.4/50/60 10/12 4.0±0.2 30/36
24" 600 50/60/80/100 10/12 4.4±0.2 36/42
26" 650 50/60/80/100 10/12 4.8±0.2 40/46
28" 700 50/60/80/100 10/12 4.8±0.2 42/50
30" 750 50/60/80/100 10/12 5.0±0.2 46/54
32" 800 50/60/80/100 10/12 5.0±0.2 46/57
36" 900 50/60/80/100 10/12 5.8±0.2 64
40" 1000 50/60/80/100 10/12 5.8±0.2 70
44" 1100 50/60/80/100 10/12 6.4±0.2 72
48" 1200 50/60/80/100 10/12 6.8±0.2 80

FAQ

1. Q: We want to buy Diamond Tools from your factory, how can I know the quality?

A: Try to make a trial, and then you will know clearly.Nowadays, lots of people in the world like to use Chinese products though the quality is not the best while the price is very competitive. we think a small amount trial order for testing is necessary.

2. Q:We are selling big quantity of saw blade in our country with our brand name only. Can we laser our logo on the blade?

A:We will do it for you but need to charge some money. Maybe 1% of the blade cost

3. Q: Can you offer FREE Samples?

A: Never offer free samples, this is very high value products. There is not company would like to offer free samples, if you want to try the products please buy.

4. Q: Do you have office or agent in our country?

A: We doesn't have agent in any country at present.

5. Q: What about the minimum quantity?

A: It is depended by the spcification of diamond tools
