Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine
Specifications
Brand Name :
OEM
Model Number :
6A2
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
1000 pcs per month
Delivery Time :
15 days
Packaging Details :
Export standard
Abrasive :
Diamond
Diamond grit :
80,150,230,etc.
Bond :
Metal
Hardness :
soft or as customers'required
Body Material :
steel
Work piece :
glass
Description

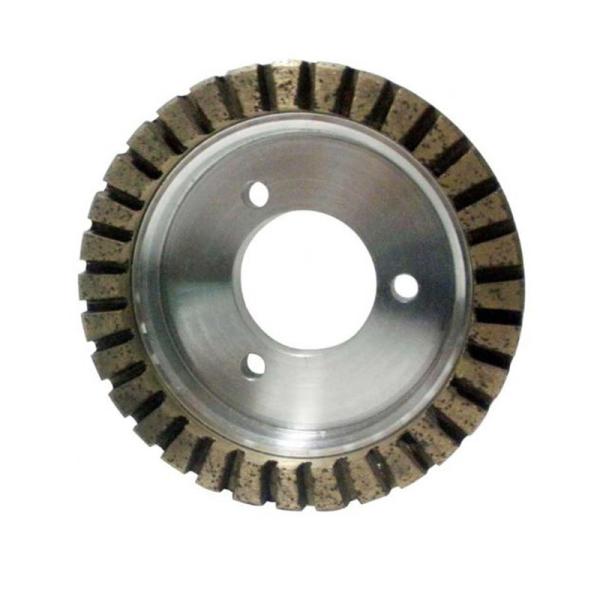

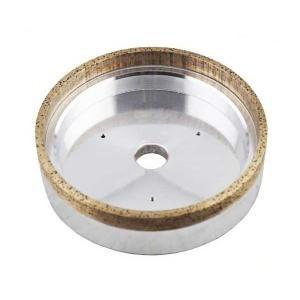

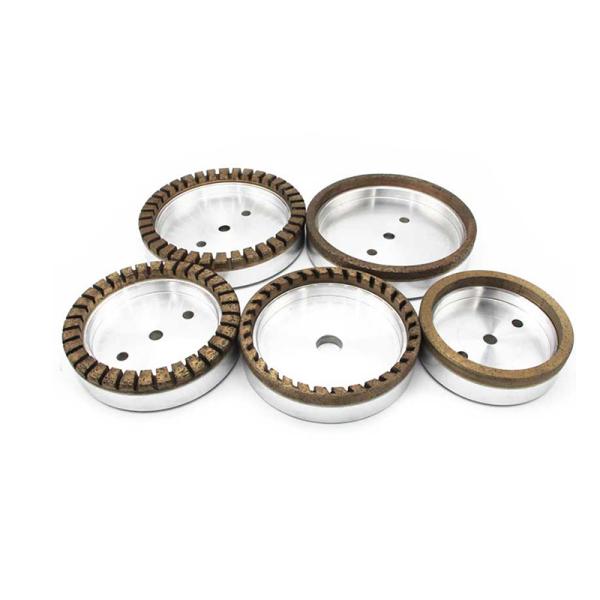

6A2 Metal bonded diamond glass wheel for straight edge machine

Name metal grinding wheel/diamond glass wheel for straight edge machine HS code 680421000
Bond Metal bond Material Steel
Abrasive Diamond Packing purple box, 1pcs /box
Size D:25mm-500mm T: 5mm-40mm H:10mm-127mm OEM/ODM Available
Type code 6A2
Usage Mainly used for grinding , sharping and polsihing . Widly used in the filed of ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc

Sample Cost

 Depends on the design, please contact us to discuss further

Heat Resistance Metal Bonded Diamond Grinding Wheels For Straight Edge Machine

Product Uses

How to choose abrasive:

There are two main types of abrasives: diamond (SD, ND) and cubic boron nitride (CBN). Correct selection of abrasives is the key to effective grinding.

Abrasive Application
Diamond SD

Grinding, finishing and polishing of cemented carbide, glass cutting and grinding tools, magnetic materials, etc.

ND

CBN
CBN		 Precision grinding and polishing of various kinds of steel, such as bearing steel, stainless steel, carbide steel and tools, die steel, etc.

How to Choose Binders:

Bond Application

Resion-bonded

(B)

 Grinding efficiency is high and self-sharpening is good. It is mainly used for semi-finishing, finishing and polishing, but not for heavy load grinding.

Vitrified-bonded

(V)

 It is used for forming grinding with large contact area and sintered grinding of superhard materials.

Metal-bonded

(M)

Diamond abrasives are used for rough grinding of cemented carbides and grinding and cutting of high-hardness non-metallic materials such as optical glass, semiconductor materials, ceramics, etc.

CBN Abrasive Tool Used in Metal Material Forming and Honing of Alloy Steel

Electroplated-bonded

(P)

 Production of various small, special-shaped products, can be used in the processing of high-hard metal, non-metallic materials.

How to choose the grit:

Rough Grinding Semi-grinding Precision Grinding Polishing Grinding
Grit 50/60-120/140 120/140-200/230 200/230-M36/54 M22/M36-M0/0.5

Our Service

Raw material quality

We strictly choose the raw material from the professional and regular material suppliers.

Product quality Test
Make sure the products meet the standard data and fulfill the market need.

After-sale Service
We will provide the best service for the clients, and help customers to make full use of our product.
