High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
High Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill
Specifications
Brand Name :
OEM
Model Number :
3A1
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10000 pcs per month
Delivery Time :
15 days
Packaging Details :
As customers'required
Type :
Abrasive grinding tool
Usage :
sloting, grooving
Core materials :
Aluminum
Abrasive :
Diamond
FEPA Shape :
3A1
Feature :
High Precision
Description

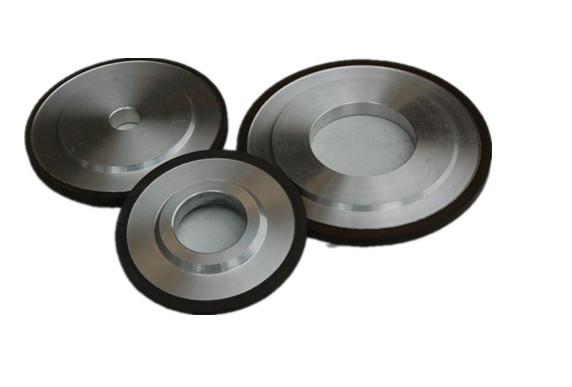

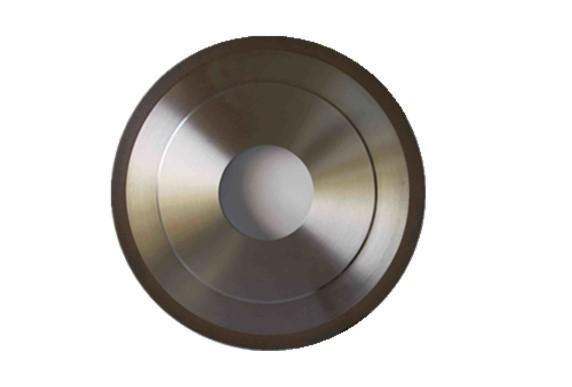

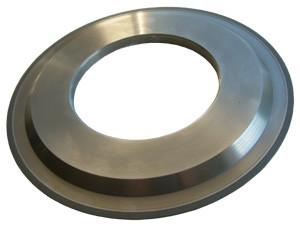

1. 3A1 High Precision diamond Grinding Wheel for Micro Drill Grinding

2.

Product Name 3A1 high precision diamond grinding wheel for micro drill grinding
Application

Mainly used for grinding&cutting hard and brittle alloy,non-metal materials.

Such as hard alloy, ceramics, agate, optical glass, semiconductor materials

and wear-resistant cast iron, stone, spring steel, tool steel, bearing

steel, etc.
Bond Material Resin etc. Blade Color Natural or Customized
Brand OEM Payment T/T, negotiation
Blade Material Diamond /CBN Package Carton box or Customized
Usage Dry & Wet Delivery 7-12 days after down payment

Specification

(Can be customized)

 Brand Type Diameter Height
Resin bond 150 - 350 mm 10 to 22mm
Electroplated Customized
Shape code

3A1
Advantages

1. High hardness, high strength, strong abrasive

2. Self sharp, small working heat, not easy to plug

3. Long life span and stable performance 4. Competitive price and superior quality

5. Safe package and fast delivery

6. Professional&excellent service
Production Technology From Germany
MOQ 5pcs of each specification,Total need more than 10pcs
Main Market

USA, Canada, Germany, Italy, Portugal, Poland, Russia, Brazil, Chile,

Australia, UAE, South Africa etc.

3.Specification of 3A1 High Precision diamond Grinding Wheel for Micro Drill GrindingHigh Precision Resin Bond Diamond Wheels , Diamond Grinding Wheels For Micro Drill

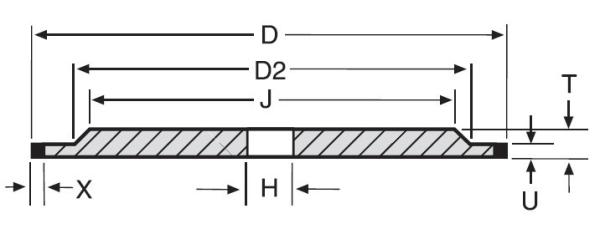

Diameter(D) Height (T) U Thickness(X) Hole(H)
150 10 2.0/3.0 3 31.75
200 10 3 3 31.75
300 14/19 5.5/8.0/10.0/12.0 3 127
350 22 10 5 127
